GSCH4000

GSCH4000

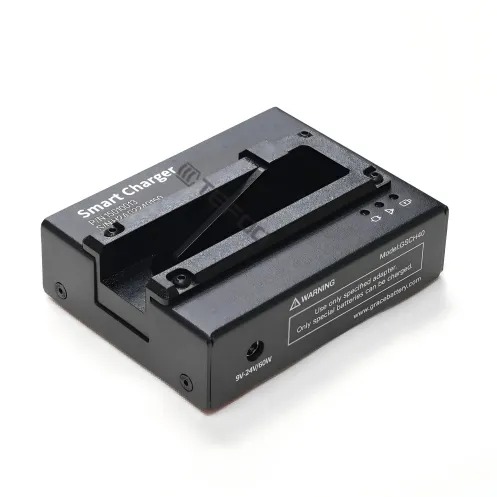

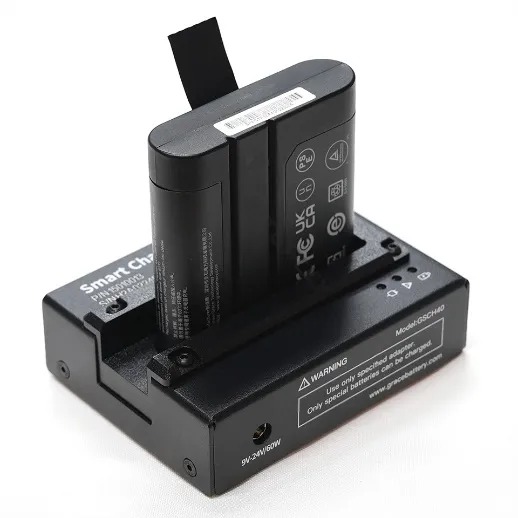

GSCH4000 smart battery charger compatible with all TEFOO standard smart batteries

Input power :60W
Output electricity:0~4A
Safety certification:CE/FCC/RoHS
Maximum output power:≥50.4W

Categories: ,
Green procurement

Description

1.Wide range voltage input

2.Efficient, safe and fast charging.



3. Adaptive smart battery output.

4. Compatible with all TEFOO standard smart battery.

5. Full safety protection functions, such as over voltage, over current, reverse connection protection, etc.

Overview
Input interface 2.1φx5.5φDC
Output Interface 5PIN Blade smart battery interface
Operating temperature -30°C~70°C
Recommend Charger temperature 0°C~50°C
Electrical performance
Input voltage 9~24V DC(The input voltage should be higher than 1V of the standard battery charging voltage)
Input power ≥60W
Output voltage 0~16.8VDC(Suitable for 1~4 series Smart battery packs)
Output electricity 0~4A
Maximum output power 50.4W
Charging efficiency >85%
Safety certification CE/FCC
Dimensions
Length 179.0mm ± 0.2mm
Width 92.0mm ± 0.2mm
Height 54.0mm ± 0.2mm
Weight 235g±10g(Without Power adapter)
LED instruction
Power-on Blue LED light
Charging Green LED flast
Fully charged Green LED light
Failure Red LED light
