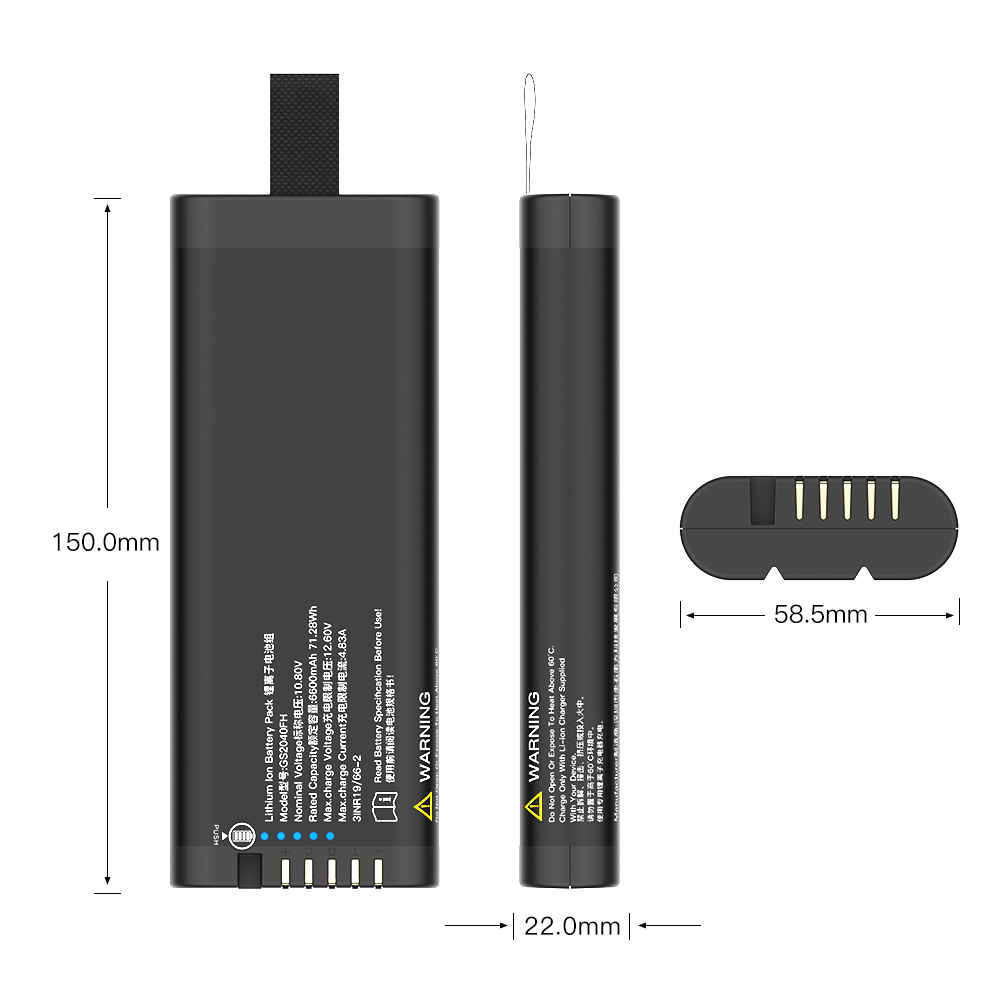

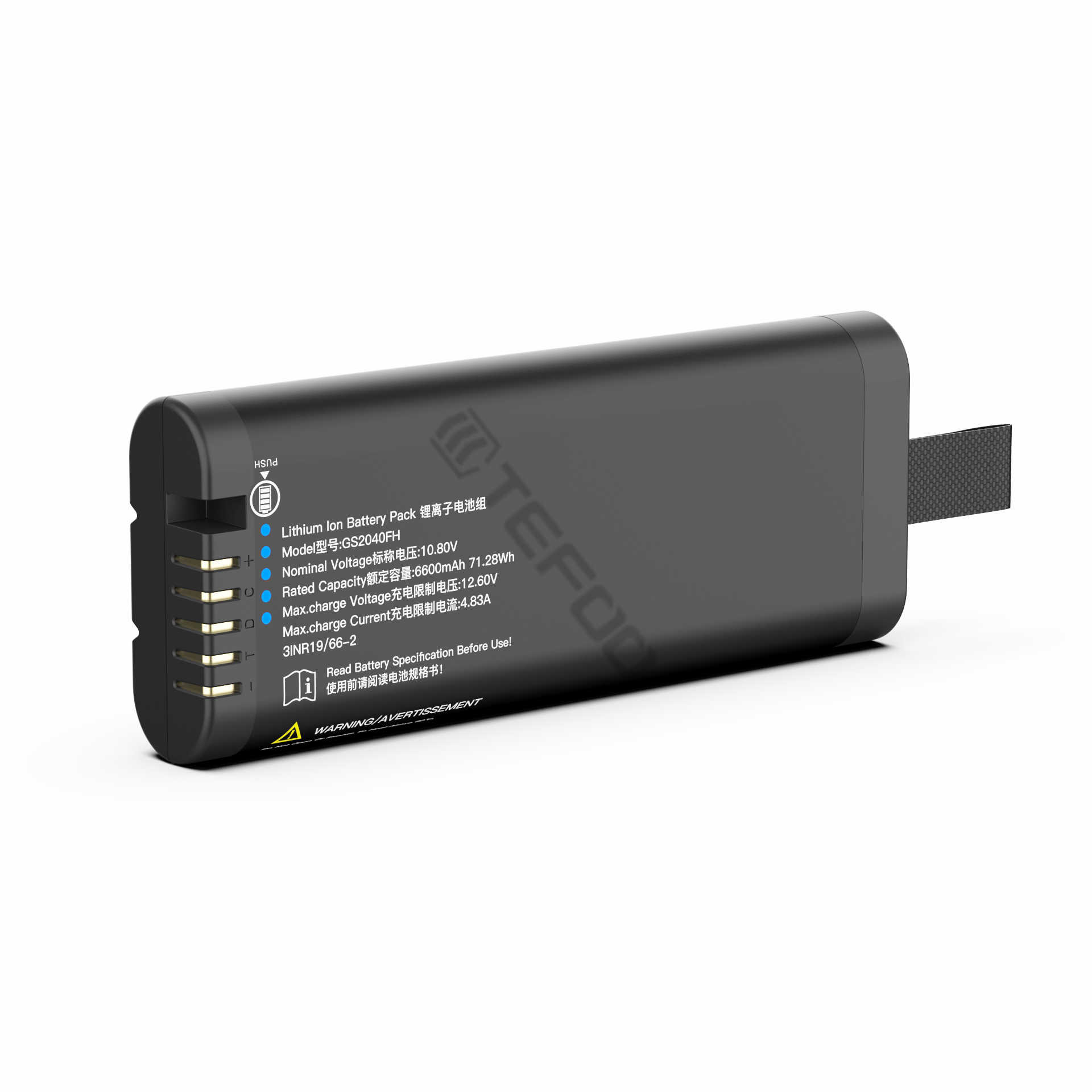

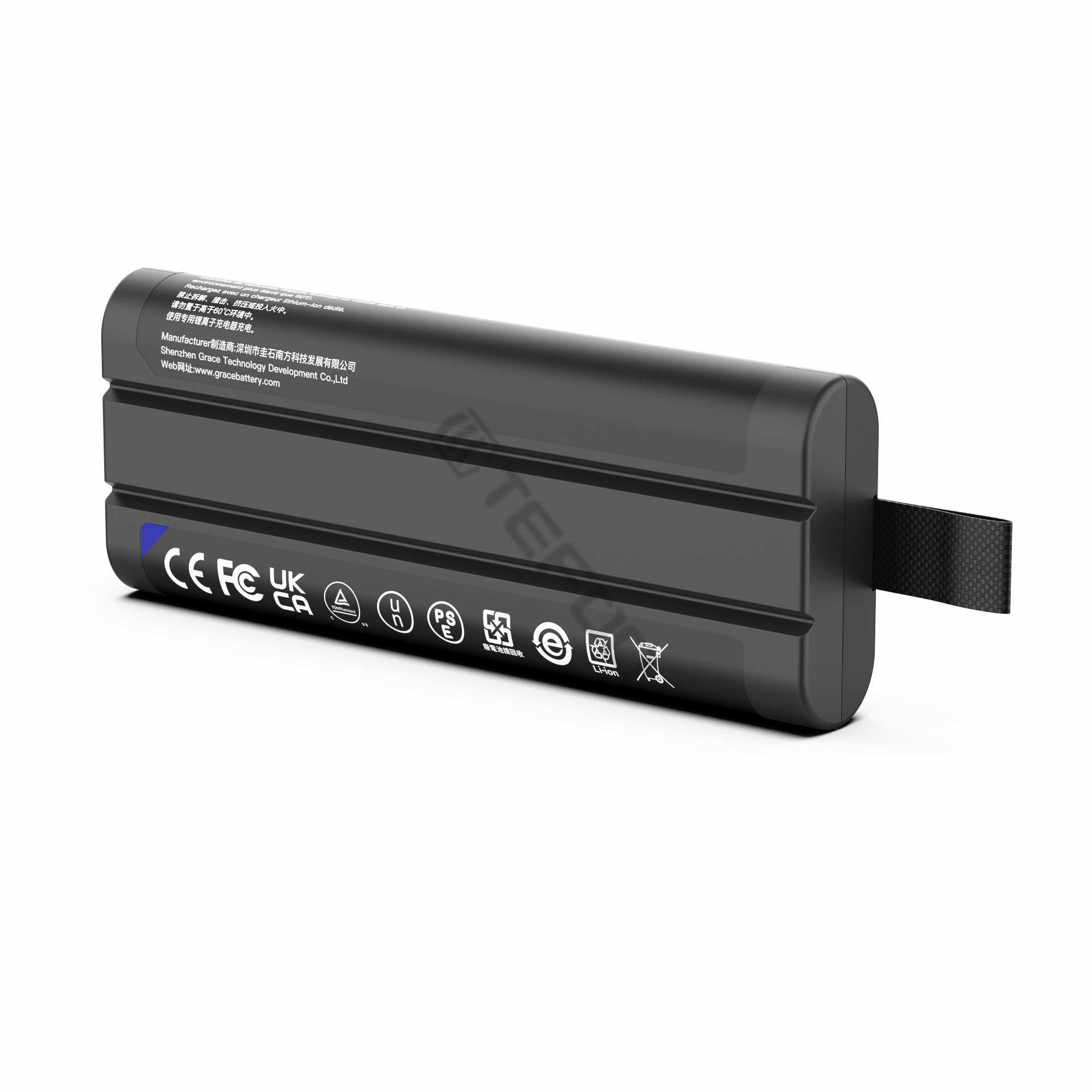

GS2040FH is an independently engineered 3S2P smart lithium-ion battery platform developed for industrial and medical devices requiring stable runtime behavior, intelligent system communication, and balanced performance between capacity and compact design. The battery delivers a nominal voltage of 10.8V and rated capacity of 6600mAh, providing a stable energy solution for applications requiring extended runtime while maintaining manageable size and weight.

The 3S2P configuration supports balanced current distribution and stable discharge characteristics, making it suitable for multi-functional instrument systems operating under varying load conditions.Maximum charge voltage is 12.6V with a maximum charge current of 4.83A. GS2040FH complies with SMBus v1.1 smart battery specifications, enabling host-level communication and runtime monitoring. Integrated fuel gauging supports accurate state-of-charge reporting, while JEITA-based charging optimization enhances temperature-aware charge control.

✅The platform incorporates:

• Panasonic lithium-ion cells for high energy density and stability
• High-precision fuel gauge for accurate power management
• Cell balancing function to improve lifecycle consistency
• Low internal resistance design for stable output under dynamic loads

Multiple safety mechanisms include:

• Overcharge, over-discharge, overcurrent, and short circuit protection
• Overtemperature protection with host-monitored temperature capability
• Multiple safety redundancy design for fail-safe operation

The battery supports reliable long-term operation with stable performance across repeated charge cycles.

✅ Instrument-Level Integration Checklist

✅ Typical Device Integration Context

GS2040FH is designed for integration into:

• CT specialized monitors
• Acoustic imaging systems
• Spectrometers
• Ground penetrating radar equipment
• Industrial and medical instruments requiring stable and extended runtime

The platform supports manufacturers developing multi-application instrument systems requiring reliable and intelligent power management.

✅ OEM Supply

• No minimum order quantity (MOQ) for standard configuration
• Stock available for immediate or short-cycle delivery
• Typical delivery time: 7–30 days
• Production capacity aligned with standardized battery platform supply

Technical documentation and product specifications are available upon request.

✅ FAQ

Is GS2040FH a 3S2P smart battery pack?

Yes. GS2040FH is a 3S2P lithium-ion battery pack with a 10.8V nominal voltage and 6600mAh capacity, designed for instrument systems requiring balanced runtime and performance.

Does GS2040FH support SMBus communication?

Yes. GS2040FH complies with SMBus v1.1 smart battery specifications, enabling system-level communication, monitoring, and intelligent power management.

What is the advantage of the 3S2P configuration?

The 3S2P configuration provides increased capacity compared to lower configurations while maintaining a balanced size and weight, making it suitable for portable instrument systems.

What types of devices use GS2040FH?

GS2040FH is used in instrument systems such as spectrometers, acoustic imaging equipment, CT-related monitors, and ground penetrating radar devices.

What is the production lead time for GS2040FH?

Typical delivery time ranges from 7 to 30 days depending on order volume and scheduling. There is no minimum order quantity restriction.

This battery platform is part of our broader solutions for industrial and medical instrument systems requiring balanced capacity, stable performance, and intelligent power management.
