Standard battery pack GS2040CH

Standard battery pack GS2040CH


Standard battery pack GS2040CH (3S1P) suitable for use with industrial and medical devices, etc. Introducing the GS2040CH Customizable Battery Pack, designed to power handheld x-ray scanners with unmatched efficiency and reliability. This high-performance battery pack is tailored to meet the rigorous demands of medical imaging devices, ensuring consistent and dependable energy supply for critical diagnostic applications.

Key specifications

Combination: 3S1P
Energy: 35.64Wh
Nominal Voltage: 10.8V
Rated Capacity: 3300mAh
Max.charge Voltage: 12.6V
Max.charge Current: 2.41A

GS2040CH is approved worldwide

Description

With industry-leading Panasonic cells and a robust 3S1P structure, the GS2040CH combines innovative design with advanced safety features. Its global certifications and compliance with international safety standards further solidify its position as a trusted power solution in the healthcare industry.

Features and Benefits

Global Certification Compliance

Certification Compliance: Meets safety standards in most countries, providing reliable performance and peace of mind.
Worldwide Approvals: Includes certifications such as UN38.8, UL, CE, CCC, and more, ensuring adherence to the highest safety and quality standards.

Advanced Interface and Monitoring

SMBus v1.1 Interface: Standardized communication protocol for seamless battery management and integration.
Integrated LED SOC Indicator: Built-in LED state of charge indicator for real-time monitoring of battery status.

Superior Cell Quality

Panasonic Cells: Utilizes Panasonic cells known for the highest energy density and stability, ensuring long-lasting and dependable power.
Energy Density: Maximizes power output while maintaining a compact and lightweight design.

Safety and Protection

Comprehensive Safety Functions: Includes overcharge, over-discharge, overcurrent, overtemperature, and short circuit protections to safeguard both the device and user.
Multiple Safety Redundancy Design: Ensures fail-safe operation and enhanced reliability.

Optimization and Longevity

JEITA Charging Rules: Optimizes charging processes to extend battery life and maintain peak performance.
Balance Function: Enhances battery lifespan by maintaining cell balance.
High Precision Fuel Gauge: Provides accurate monitoring of battery health and status.
Durability: Retains up to 80% of its initial capacity after 500 cycles, guaranteeing long-term reliability.

User-Friendly Design

Finger Type Metal Interface: Easy to disassemble design for quick and hassle-free maintenance.
Temperature Monitoring: Allows the host device to monitor battery temperature for improved safety and performance optimization.

Additional Benefits

No Additional Fees: No development fee, mill fee, or certification fee, ensuring cost-effective solutions.
Ready Stock: Immediate availability with no minimum order quantity (MOQ) limit.

Enhance the performance of your handheld x-ray scanners with the GS2040CH Customizable Battery Pack. For more information or to request a quote, contact us today and discover how our solutions can power your medical innovations.

Information
Factory capacity 20%~30%
Certification CE/FCC/IEC62133/UN38.3
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 10.8V
Rated capacity 3300mAh
Nominal capacity 3450mAh
Internal resistance <300mΩ@1kHz at 25℃
Maximum charging current 2.41A
Maximum charging voltage 12.6V
Maximum discharge current 4.0A
Cycle life 500 cycles≥80% Rated capacity

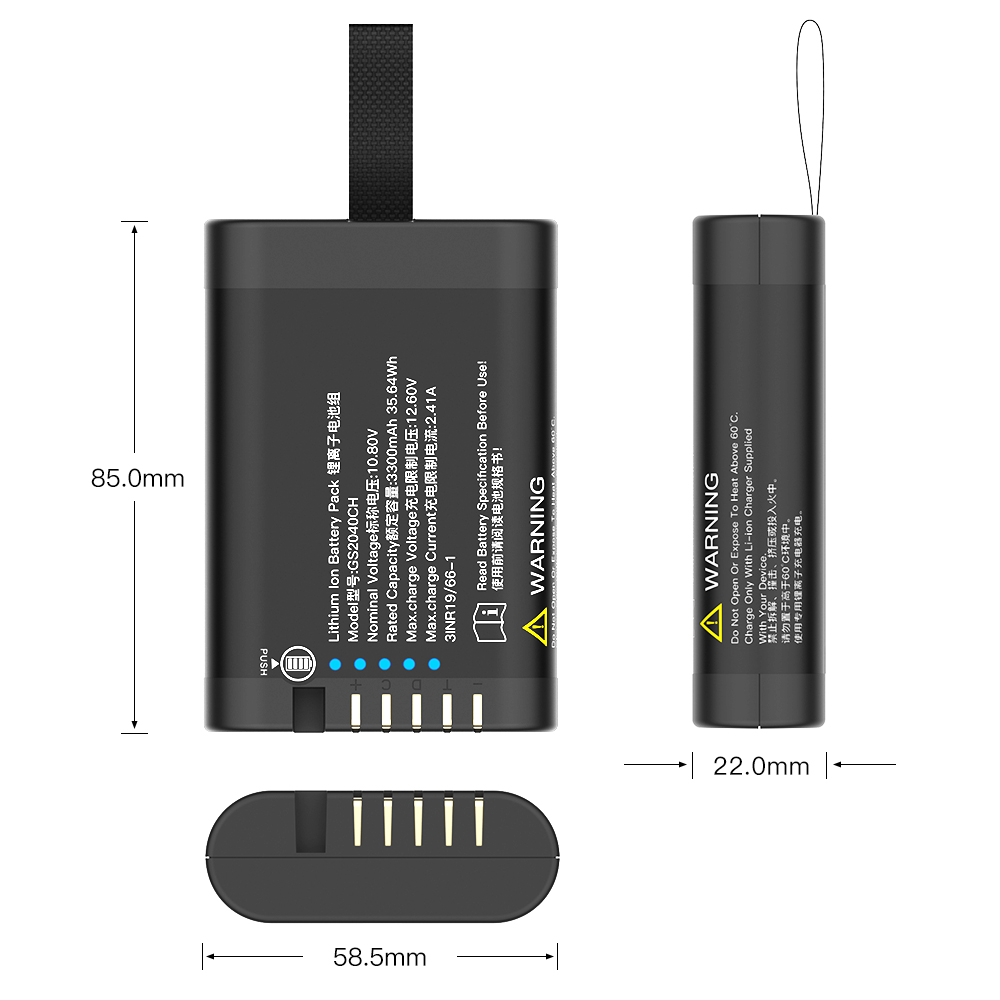

Dimensions
Length 85.0mm ± 0.3mm
Width 58.5mm ± 0.3mm
Thickness 22.0mm ± 0.3mm
Weight 180g±10g
Interface
