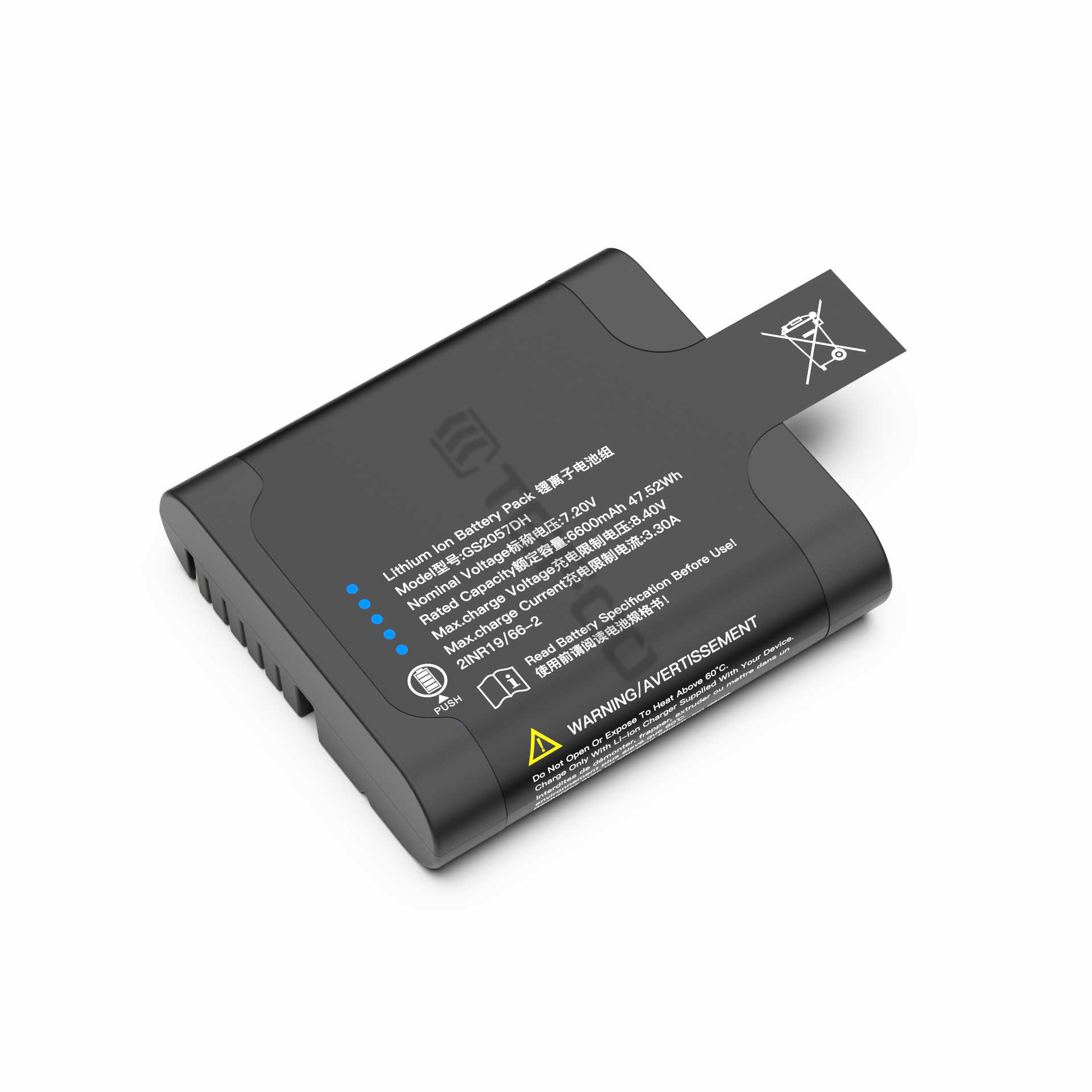

GS2057DH is an independently engineered 2S2P smart lithium-ion battery platform developed for precision instruments such as 3D laser scanners and toxic gas analyzers requiring stable power output, intelligent system communication, and reliable performance in field environments.

The battery delivers a nominal voltage of 7.2V and rated capacity of 6900mAh, providing 47.52Wh of energy.

The 2S2P configuration supports stable discharge characteristics and improved current distribution, enabling consistent runtime performance for precision measurement equipment.

Maximum charge voltage is 8.4V with a maximum charge current of 3.3A. GS2057DH complies with SMBus v1.1 smart battery specifications, enabling host-level communication and runtime monitoring. Integrated fuel gauging supports accurate state-of-charge reporting, while JEITA-based charging optimization enhances temperature-aware charge control.

✅The platform incorporates:

• Panasonic lithium-ion cells for high energy density and stability
• High-precision fuel gauge for accurate power management
• Cell balancing function to improve lifecycle consistency
• Low internal resistance design for stable output during measurement operations

Multiple safety mechanisms include:

• Overcharge, over-discharge, overcurrent, and short circuit protection
• Overtemperature protection with host-monitored temperature capability
• Multiple safety redundancy design for fail-safe operation

The battery maintains up to 80% of initial capacity after 500 cycles, ensuring reliable long-term use in professional instrument environments.

✅ Instrument-Level Integration Checklist

✅ Typical Device Integration Context

GS2057DH is specifically designed for integration into:

• 3D laser scanning systems
• Toxic gas analyzers
• Portable precision measurement instruments
• Field-based detection equipment requiring stable and reliable power

The platform supports manufacturers developing precision analytical and detection instruments requiring stable, consistent, and intelligent power systems.

✅ OEM Supply

• No minimum order quantity (MOQ) for standard configuration
• Stock available for immediate or short-cycle delivery
• Typical delivery time: 7–30 days
• Production capacity aligned with standardized battery platform supply

Technical documentation and product specifications are available upon request.

✅ FAQ

Is GS2057DH a 2S2P smart battery pack?

Yes. GS2057DH is a 2S2P lithium-ion battery pack with a 7.2V nominal voltage and 47.52Wh energy rating, designed for precision instrument applications.

Does GS2057DH support SMBus communication?

Yes. GS2057DH complies with SMBus v1.1 smart battery specifications, enabling system-level communication, monitoring, and intelligent power management.

Is GS2057DH suitable for 3D scanning and gas analysis equipment?

Yes. GS2057DH is specifically engineered for 3D laser scanners and toxic gas analyzers requiring stable power supply and reliable operation.

What makes GS2057DH suitable for precision instruments?

The battery provides stable output, accurate fuel gauging, and intelligent communication, supporting consistent measurement performance and device reliability.

What is the production lead time for GS2057DH?

Typical delivery time ranges from 7 to 30 days depending on order volume and scheduling. There is no minimum order quantity restriction.

This battery platform is part of our broader solutions for precision instrument and detection systems requiring stable, accurate, and intelligent power management.
