Standard battery pack GS2037DH

Standard battery pack GS2037DH


Standard battery pack GS2037DH (2S2P) suitable for use with industrial and medical devices, etc.

Energy: 47.52Wh
Nominal Voltage: 7.2V
Rated Capacity: 6600mAh
Max.charge Voltage: 8.4V
Max.charge Current: 8.0A

GS2037DH is approved worldwide

Description

  • Lithium-ion battery with CCC certification.
  • Certification compliance in most countries.
  • Standard SMBus v1.1 interface.

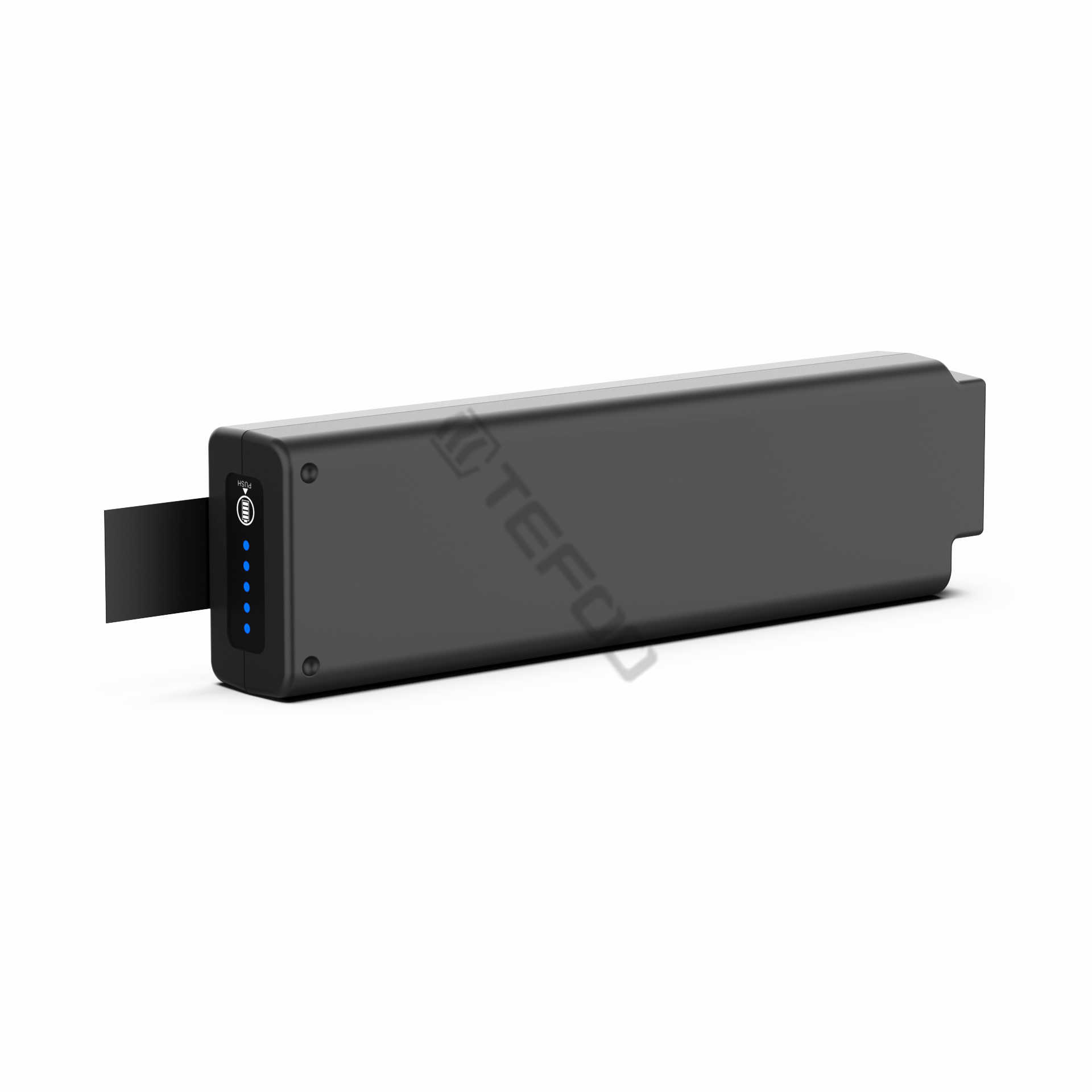

  • Integrated LED state of charge (SOC) indicator.
  • Panasonic cells, highest energy density and stability.
  • JEITA charging optimization rules.
  • Comprehensive safety protection functions, such as overcharge, over-discharge, overcurrent, overtemperature, short circuit, etc.
  • Balance function, effectively improve battery life.
  • High precision Fuel gauge.
  • Multiple product profiles, high reliability construction, power visualization.
  • Finger type metal interface, easy to disassemble design.
  • The host can monitor the battery temperature.
  • Panasonic cells with the highest energy density and stability.
  • Worldwide approvals and certifications for safety standards, including UN38.8, UL, CE, etc.
  • No development fee, no mill fee, no certification fee.
  • Stock available, no MOQ limit.
  • Multiple safety redundancy design.
  • Up to 80% of initial capacity after 500 cycles.
Information
Factory capacity 20%~30%
Certification CE/FCC/IEC62133/UN38.3/UL2054
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 7.2V
Rated capacity 6600mAh
Nominal capacity 6900mAh
Internal resistance <200mΩ@1kHz at 25℃
Maximum charging current 3.3A
Maximum charging voltage 8.4V
Maximum discharge current 8.0A
Cycle life 500 cycles≥80% Rated capacity 100%DOD

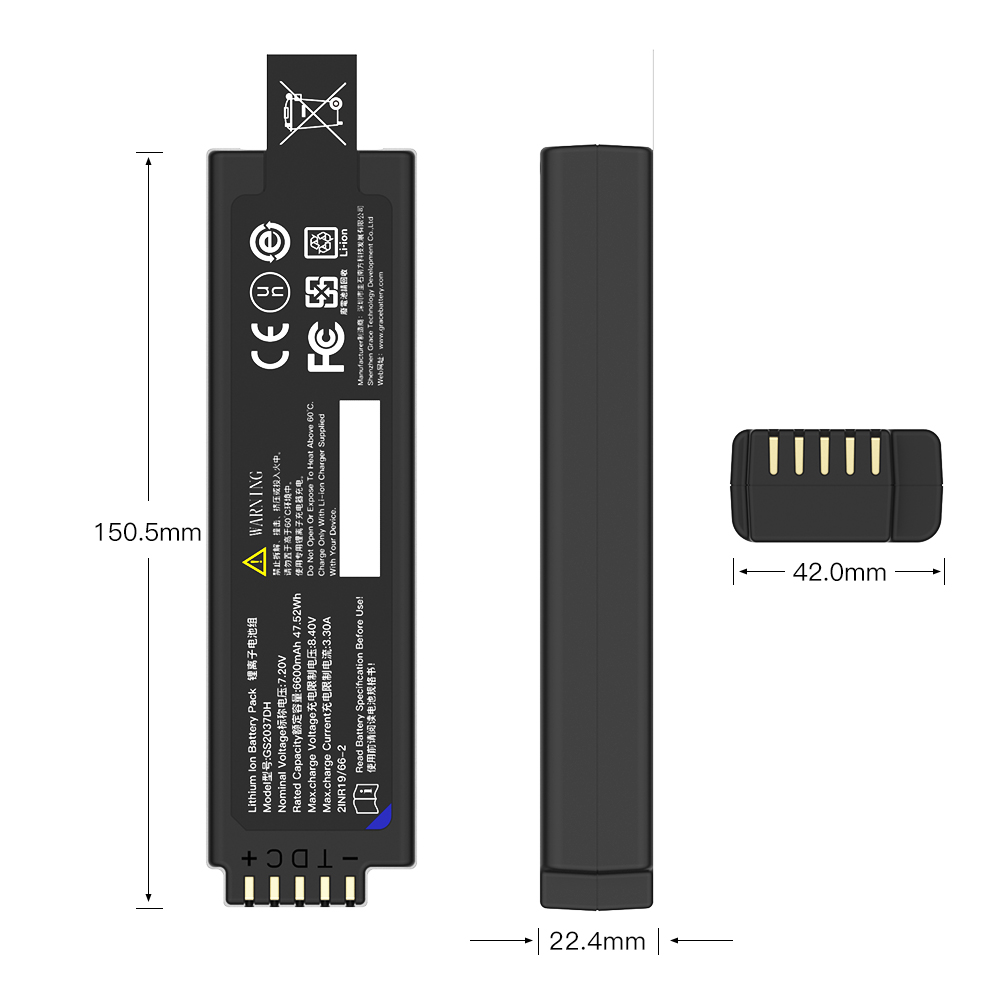

Dimensions
Length 150.5mm ± 0.3mm
Width 42.0mm ± 0.3mm
Thickness 22.4mm ± 0.3mm
Weight 235g±10g
Interface
