Standard battery pack GS2034DH

Standard battery pack GS2034DH


The GS2034DH 4S1P Standard Battery Pack is an exceptional power solution designed specifically for artificial hearts and ventricular assist devices (VADs), Handheld Retinal Camera. This advanced battery pack leverages a 4S1P structure and incorporates high-quality Panasonic cells to deliver reliable and consistent power essential for life-saving medical applications. With a focus on safety and performance, the GS2034DH meets global certification standards, including UN38.8, UL, and CE, ensuring its compliance and reliability across international markets.

Key specifications:

Combination: 4S1P
Energy: 47.52Wh
Nominal Voltage: 14.4V
Rated Capacity: 3300mAh
Max.charge Voltage: 16.8V
Max.charge Current: 1.65A

GS2034DH is approved worldwide

Description

Engineered with cutting-edge technology, the GS2034DH features comprehensive safety protection functions such as overcharge, over-discharge, overcurrent, and overtemperature safeguards. The integrated LED state-of-charge (SOC) indicator and JEITA charging optimization rules further enhance its functionality. This battery pack is designed for ease of use, with a finger-type metal interface that allows for quick disassembly and maintenance.

Features and Benefits

  • Advanced Interface: Equipped with a standard SMBus v1.1 interface for seamless integration.
  • LED SOC Indicator: Integrated LED state-of-charge indicator for easy monitoring.
  • JEITA Optimization: JEITA charging optimization rules for enhanced charging efficiency.
  • Balance Function: Effective battery life improvement through balance function.
  • High Reliability: High precision fuel gauge and numerous safety protection functions.
  • Easy Disassembly: Finger-type metal interface for quick and easy disassembly.
  • Temperature Monitoring: Capability for the host to monitor battery temperature.
  • Long Cycle Life: Maintains up to 80% of initial capacity after 500 cycles.
  • No development fee, no mill fee, no certification fee.
  • No MOQ limit,Stock available
  • Multiple safety redundancy design.

Certifications and Approvals

The GS2034DH is globally certified, adhering to the highest safety standards, including:

  • UN38.8
  • UL
  • CE

These certifications ensure that the battery pack conforms to international safety and quality standards, providing peace of mind to healthcare providers and medical device manufacturers.

For more information about the GS2034DH 4S1P Standard Battery Pack or to request a quote, contact us today. Trust in our expertise to deliver reliable and safe power solutions tailored for the medical industry.

Information
Factory capacity 20%~30%
Certification CE/FCC/IEC62133/UN38.3
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 14.4V
Rated capacity 3300mAh
Nominal capacity 3450mAh
Internal resistance <200mΩ@1kHz at 25℃
Maximum charging current 1.65A
Maximum charging voltage 16.8V
Maximum discharge current 4.0A
Cycle life 500 cycles≥80% Rated capacity 100% DOD

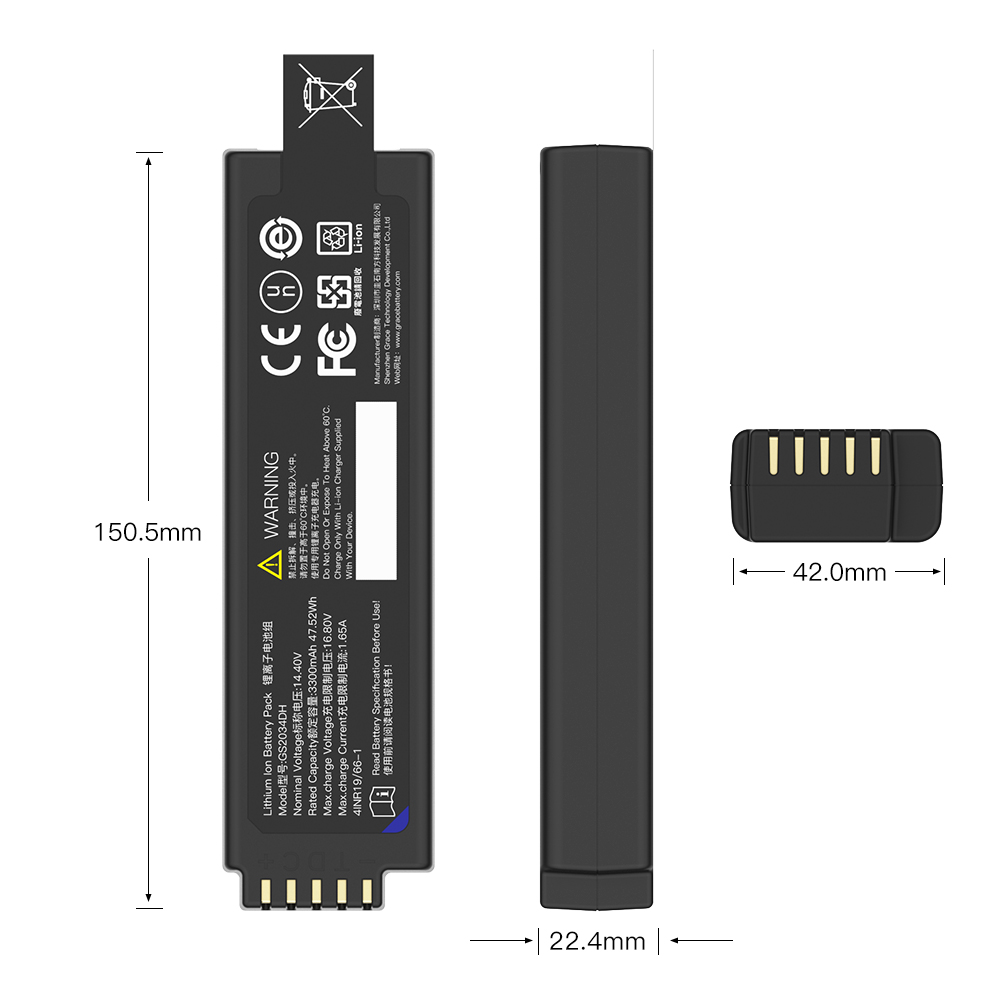

Dimensions
Length 150.5mm ± 0.3mm
Width 42.0mm ± 0.3mm
Thickness 22.4mm ± 0.3mm
Weight 235g±10g
Interface
