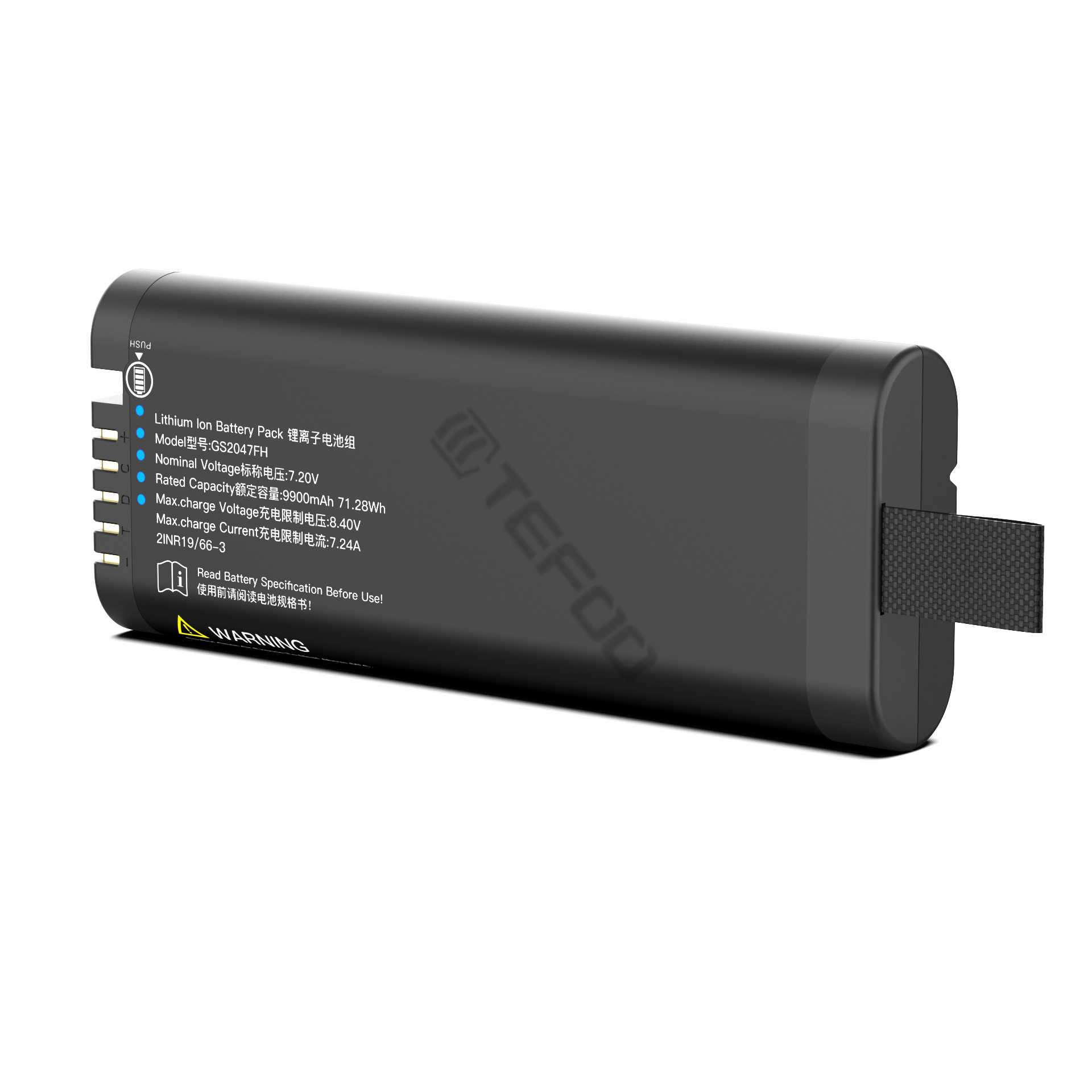

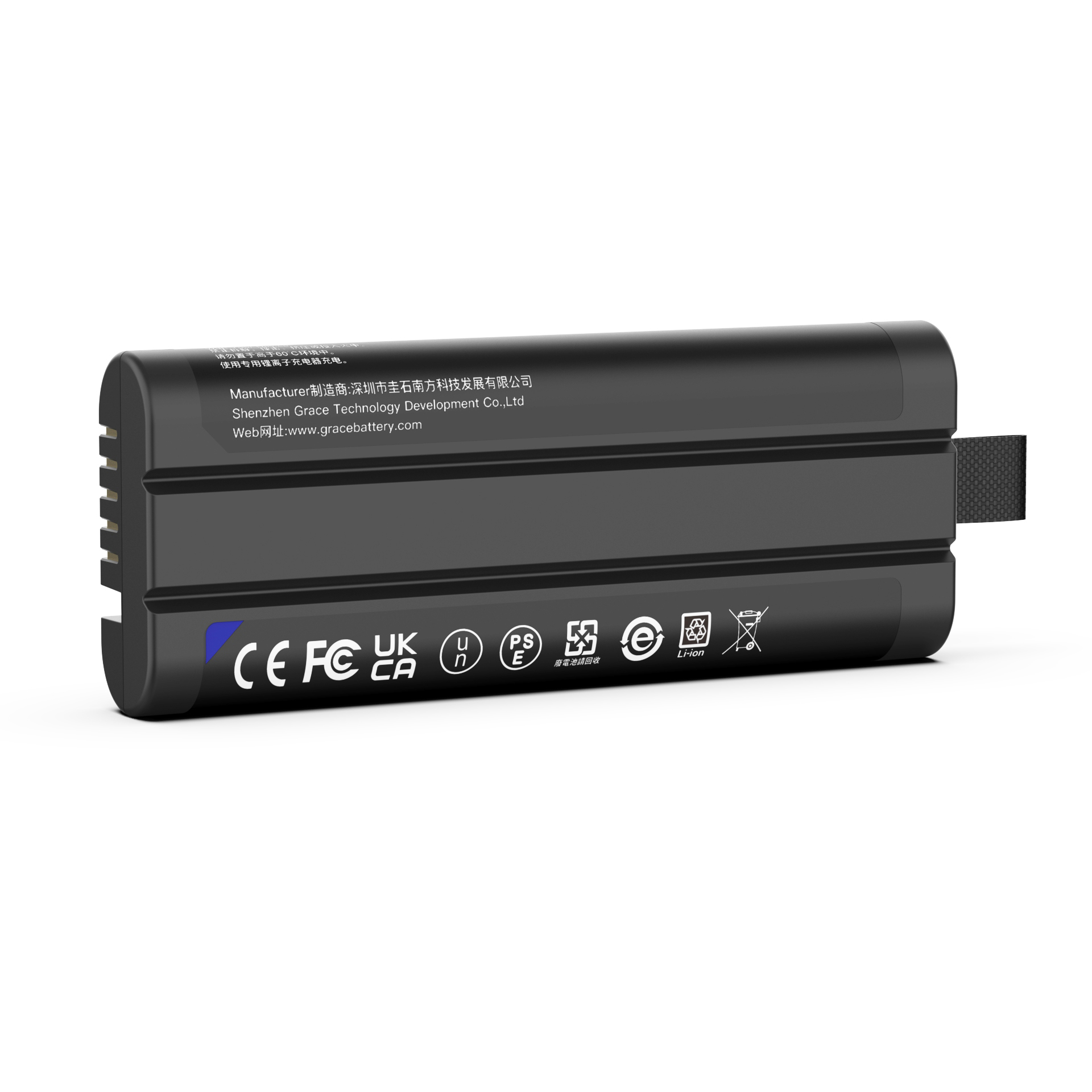

GS2047FH is an independently engineered 2S3P smart lithium-ion battery platform developed for industrial and medical devices requiring extended runtime, higher energy capacity, and stable power delivery within a 7.2V system architecture. The battery delivers a nominal voltage of 7.2V and rated capacity of 9900mAh, providing 71.28Wh of energy.

The 2S3P configuration significantly increases energy capacity and improves current distribution, supporting longer operating time and stable discharge performance for systems with higher power demand.

Maximum charge voltage is 8.4V with a maximum charge current of 7.2A. GS2047FH complies with SMBus v1.1 smart battery specifications, enabling host-level communication and runtime monitoring.Integrated fuel gauging supports accurate state-of-charge reporting, while JEITA-based charging optimization enhances temperature-aware charge control.

✅The platform incorporates:

• Panasonic lithium-ion cells for high energy density and stability
• High-precision fuel gauge for accurate battery monitoring
• Cell balancing function to improve lifecycle consistency
• Low internal resistance design for stable output under load

Multiple safety mechanisms include:

• Overcharge, over-discharge, overcurrent, and short circuit protection
• Overtemperature protection with host-monitored temperature capability
• Multiple safety redundancy design for fail-safe operation

The battery maintains up to 80% of initial capacity after 500 cycles, supporting reliable long-term operation in demanding environments.

✅ Instrument-Level Integration Checklist

✅ Typical Device Integration Context

GS2047FH is suitable for integration into:

• Industrial devices requiring extended operating time
• Medical systems with higher energy demand
• Equipment requiring stable runtime and high-capacity battery solutions
• Applications where long operating duration is critical within a 7.2V platform

The platform supports OEM manufacturers developing battery-powered systems requiring maximum runtime within a compact voltage architecture.

✅ OEM Supply

• No minimum order quantity (MOQ) for standard configuration
• Stock available for immediate or short-cycle delivery
• Typical delivery time: 7–30 days
• Production capacity aligned with standardized battery platform supply

Technical documentation and product specifications are available upon request.

✅ FAQ

Is GS2047FH a 2S3P smart battery pack?

Yes. GS2047FH is a 2S3P lithium-ion battery pack with a 7.2V nominal voltage and 71.28Wh energy rating, designed for extended runtime applications.

Does GS2047FH support SMBus communication?

Yes. GS2047FH complies with SMBus v1.1 smart battery specifications, enabling system-level communication, monitoring, and intelligent power management.

What is the advantage of the 2S3P configuration?

The 2S3P configuration significantly increases battery capacity and improves current distribution, enabling longer operating time and stable performance.

Is GS2047FH suitable for high-capacity applications?

Yes. GS2047FH is designed for systems requiring extended operating time and higher energy capacity within a 7.2V battery platform.

What is the production lead time for GS2047FH?

Typical delivery time ranges from 7 to 30 days depending on order volume and scheduling. There is no minimum order quantity restriction.

This battery platform is part of our broader solutions for industrial and medical systems requiring high-capacity, long-runtime battery performance within a 7.2V architecture.
