Key specifications
Combination: 3S3P
Nominal Voltage: 10.8V
Rated Capacity: 9000mAh
Max.charge Voltage: 12.6V
Max.charge Current: 6.51A

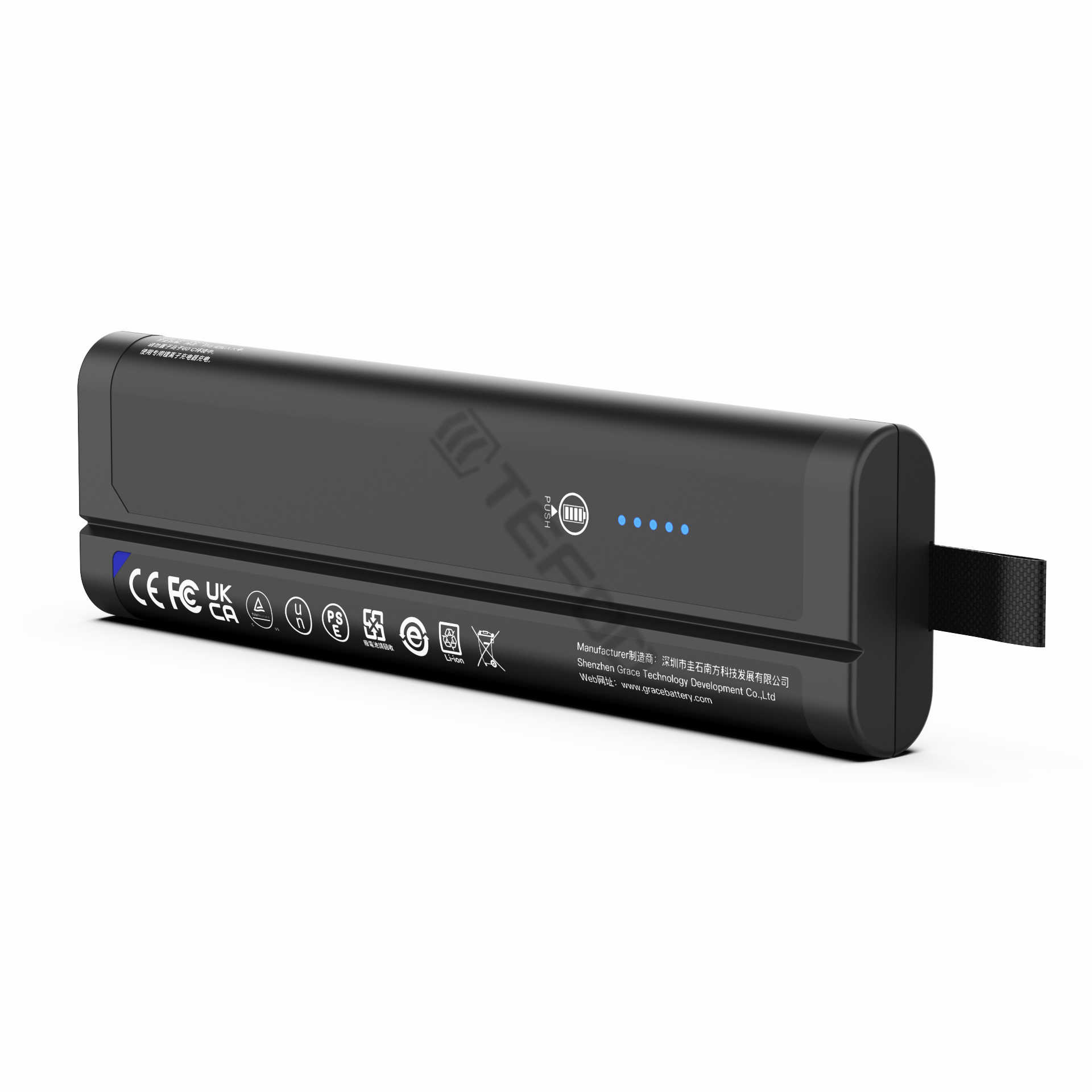

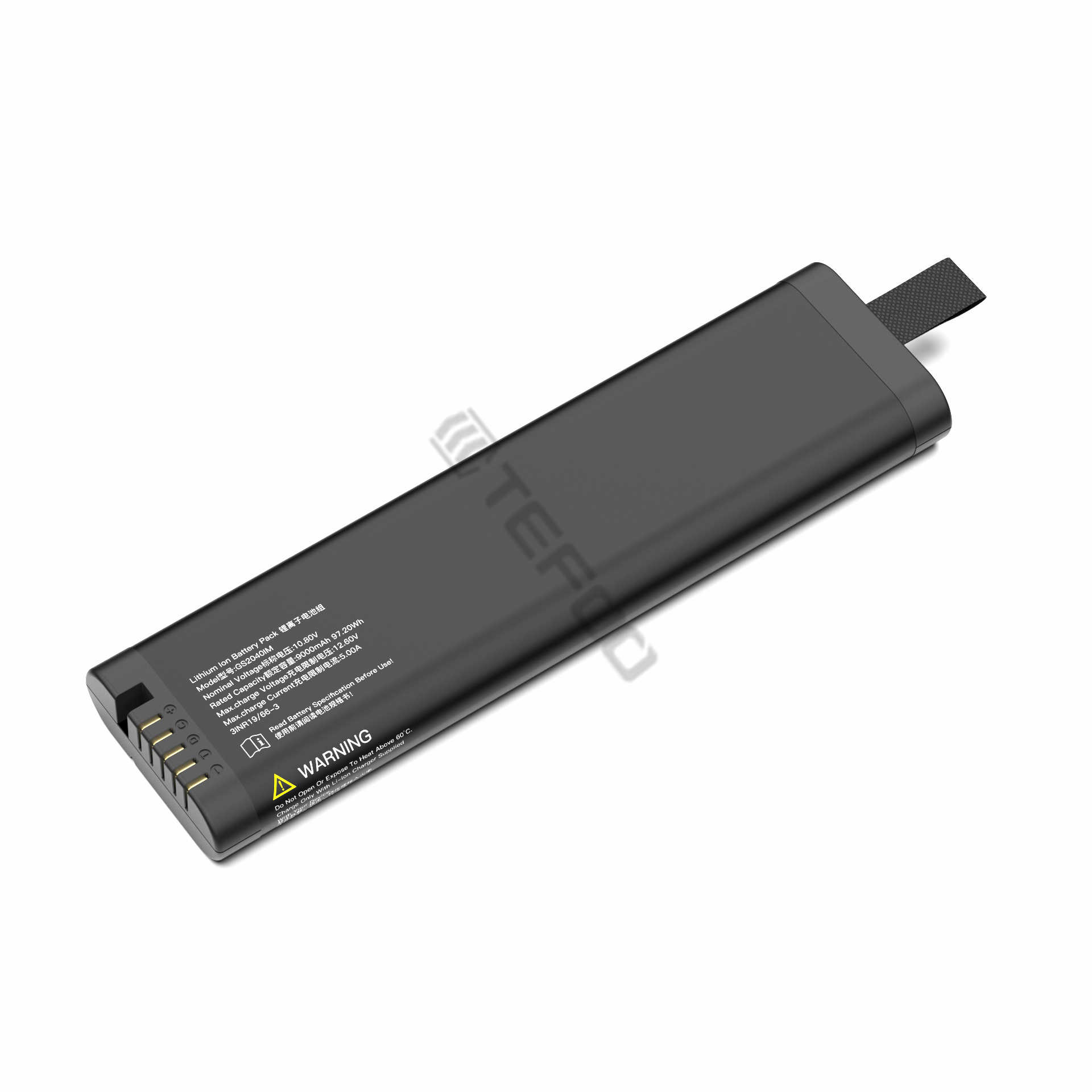

Standard battery pack GS2040IM
The GS2040IM is a high-performance 3S3P standard battery pack engineered to meet the demanding power needs of precision instruments such as oscilloscopes, radio-integrated testers, and phased array flaw detectors. This advanced power solution combines cutting-edge technology with robust safety features to ensure optimal performance in critical applications.
GS2040IM is approved worldwide
Description
Key Performance Features:
- High-precision fuel gauge for accurate power management
- Up to 80% of initial capacity retained after 500 cycles, ensuring long-term reliability
- Standard SMBus v1.1 interface for intelligent battery communication
- Integrated LED state of charge (SOC) indicator for at-a-glance status checks
Advanced Safety and Reliability
Safety is paramount in professional equipment, and the GS2040IM delivers:
- Comprehensive protection against overcharge, over-discharge, overcurrent, overtemperature, and short circuits
- Multiple safety redundancy design for fail-safe operation
- JEITA charging optimization rules for enhanced performance and longevity
- Balance function to effectively improve battery life
- Temperature monitoring capability for the host device
User-Friendly Design
We’ve prioritized ease of use and maintenance:
- Finger-type metal interface for secure connections
- Easy-to-disassemble design for simple maintenance
- Multiple product profiles ensuring high reliability and adaptability
Global Compliance and Availability
- Certified for use worldwide, meeting international safety standards including UN38.8, UL, CE, and CCC
- No development, mill, or certification fees
- Stock readily available with no minimum order quantity (MOQ) limit
Why Choose the GS2040IM?
- Tailored for Precision Instruments: Specifically designed to power oscilloscopes, radio integrated testers, and phased array flaw detectors
- Superior Cell Technology: Utilizes Panasonic cells for unmatched energy density and stability
- Intelligent Power Management: Features like high-precision fuel gauge and multiple product profiles ensure optimal performance
- Global Compliance: Certified for use worldwide, simplifying integration into your devices
- Cost-Effective: No hidden fees and no MOQ limit make it accessible for businesses of all sizes
The GS2040IM Standard Battery Pack represents the pinnacle of portable power solutions for precision instruments. Its combination of advanced features, robust safety measures, and long-lasting performance make it the go-to choice for professionals requiring reliable and high-performance power sources.
Choose the GS2040IM to ensure your precision instruments are always ready for critical measurements and analyses, providing the reliability and performance you need to deliver accurate results in any setting.
| Information | |
| Factory capacity | 20%~30% |
| Certification | CE/FCC/IEC62133/UN38.3 |
| Operating temperature | 0°C~50°C (charge) |
| -20°C~60°C (discharge) | |
| Storage temperature | -20°C~50°C（Maximum） |
| -20°C~25°C（recommend） | |
| Electrical parameters | |
| Rated voltage | 10.8V |
| Rated capacity | 9000mAh |
| Nominal capacity | 9300mAh |
| Internal resistance | ＜100mΩ@1kHz at 25℃ |
| Maximum charging current | 6.51A |
| Maximum charging voltage | 12.6V |
| Maximum discharge current | 8.0A |
| Cycle life | 1000 cycles≥70% Rated capacity |
| （Charge: 0.5C, 12.60V, 465mA cut-off. Discharge: 1C 9.00V cut-off.） | |
| Dimensions | |
| Length | 214.0mm ± 0.3mm |
| Width | 58.5mm ± 0.3mm |
| Thickness | 22.0mm ± 0.3mm |
| Weight | 500g±10g |
| Interface |  |
