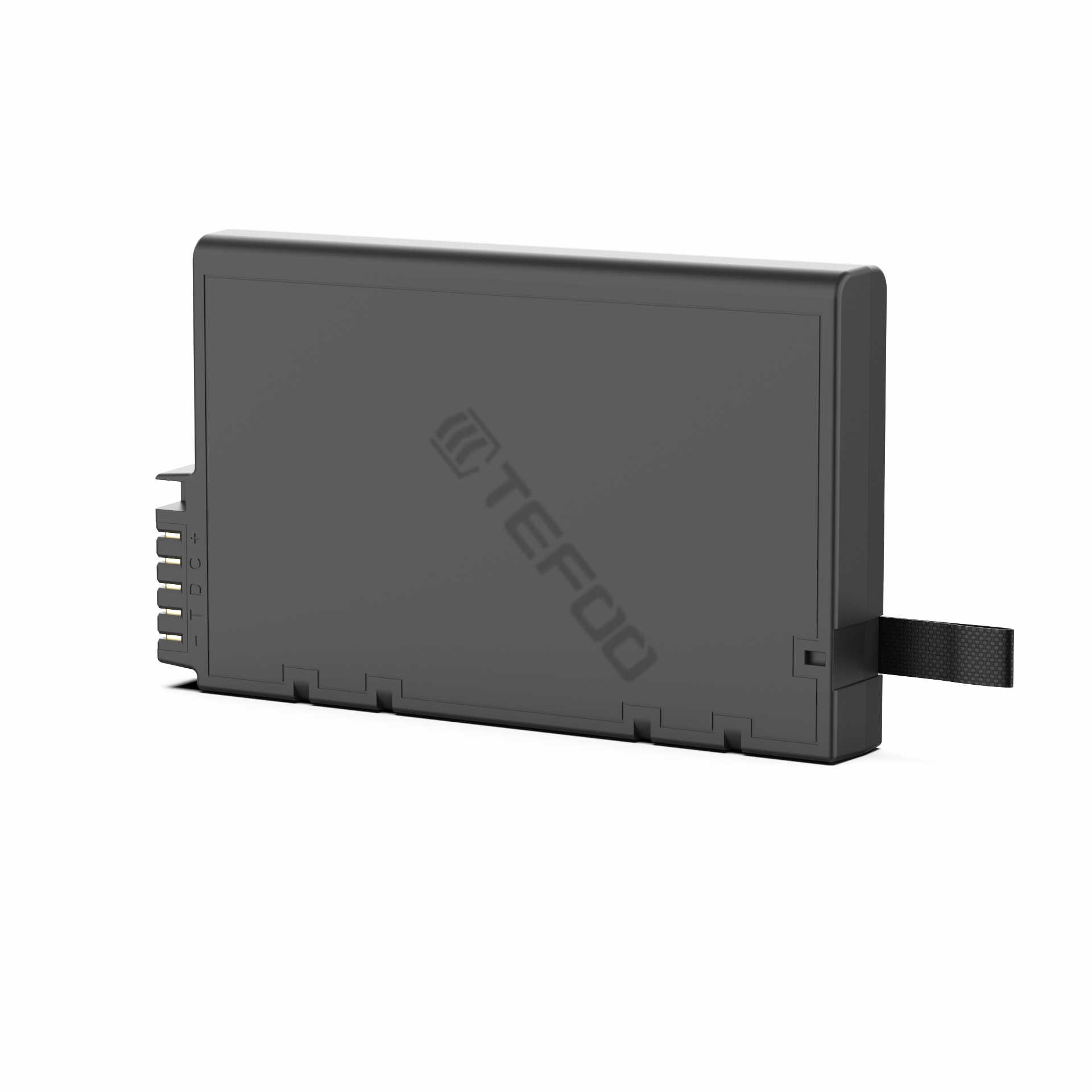

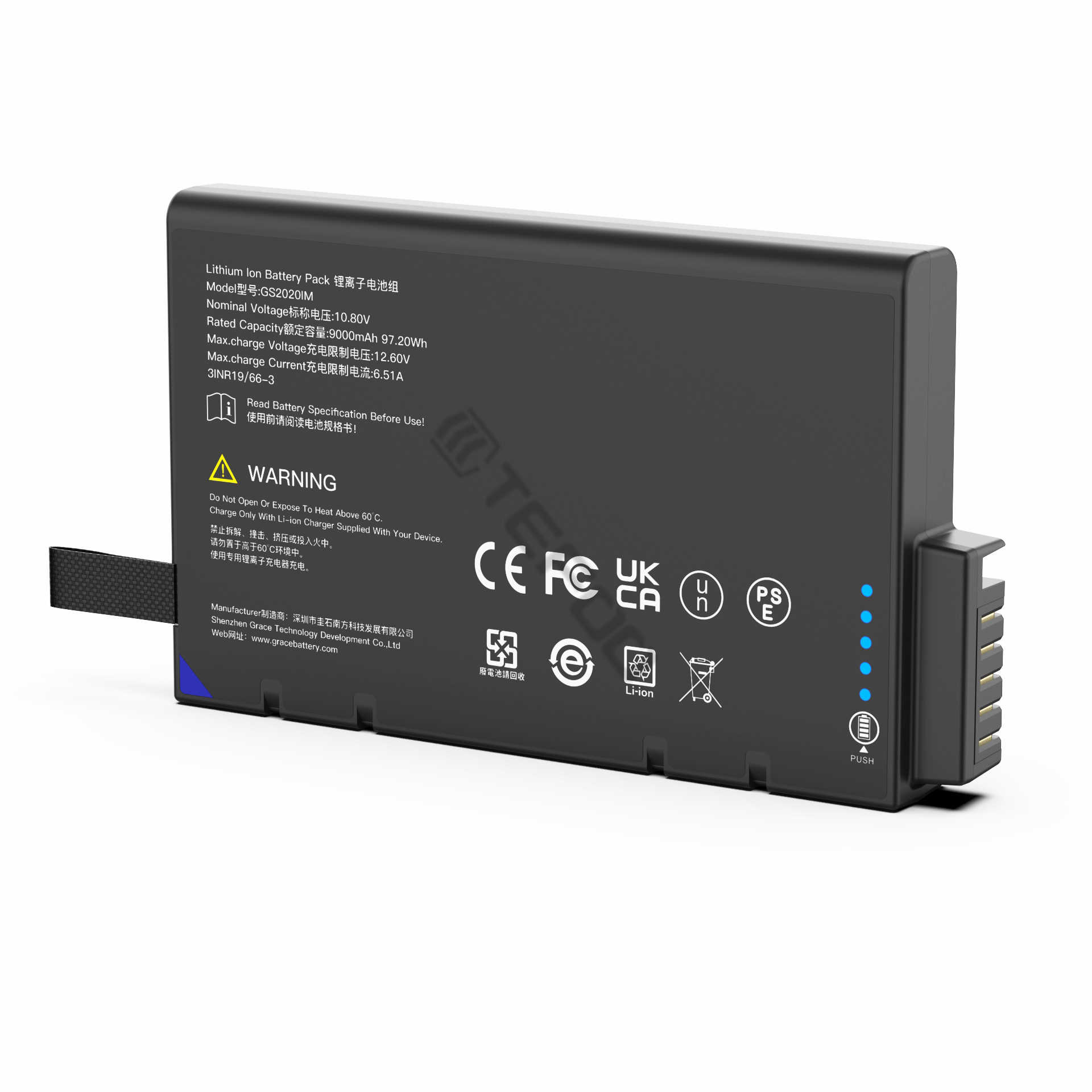

Standard battery pack GS2020IM

Standard battery pack GS2020IM


A high-performance 3S3P standard battery pack specifically engineered to power life detector devices. This advanced power solution combines cutting-edge technology with robust safety features to ensure optimal performance in critical, life-saving applications.

Key  specifications

combination: 3S3P
Energy: 97.2Wh
Nominal Voltage: 10.8V
Rated Capacity: 9000mAh
Max.charge Voltage: 12.6V
Max.charge Current: 6.51A

GS2020IM is approved worldwide

Description

Unparalleled Performance for Life Detection Equipment

The GS2020IM harnesses the power of Panasonic cells, renowned for their industry-leading energy density and stability. This ensures your life detector operates at peak efficiency when every second counts.

Key Performance Features:

  • High-precision fuel gauge for accurate power management
  • Up to 80% of initial capacity retained after 500 cycles, ensuring long-term reliability
  • Standard SMBus v1.1 interface for intelligent battery communication
  • Integrated LED state of charge (SOC) indicator for quick status checks

Advanced Safety and Reliability

In life-saving equipment, safety and reliability are paramount. The GS2020IM delivers:

  • Comprehensive protection against overcharge, over-discharge, overcurrent, overtemperature, and short circuits
  • Multiple safety redundancy design for fail-safe operation
  • JEITA charging optimization rules for enhanced performance and longevity
  • Balance function to effectively improve battery life
  • Temperature monitoring capability for the host device

User-Friendly Design

We’ve prioritized ease of use and maintenance:

  • Finger-type metal interface for secure connections
  • Easy-to-disassemble design for simple maintenance
  • Multiple product profiles ensuring high reliability and adaptability
  • Power visualization features for at-a-glance status checks

Global Compliance and Availability

  • IEC62133 and UN38.3 certified for international safety standards
  • Additional worldwide approvals including UL, CE, and CCC
  • No development, mill, or certification fees
  • Stock readily available with no minimum order quantity (MOQ) limit

Why Choose the GS2020IM?

  1. Tailored for Life Detection: Specifically designed to power life detector devices
  2. Superior Cell Technology: Utilizes Panasonic cells for unmatched energy density and stability
  3. Intelligent Power Management: Features like high-precision fuel gauge and multiple product profiles ensure optimal performance
  4. Global Compliance: Certified for use worldwide, simplifying integration into your devices
  5. Cost-Effective: No hidden fees and no MOQ limit make it accessible for organizations of all sizes

The GS2020IM Standard Battery Pack represents the pinnacle of portable power solutions for life detection equipment. Its combination of advanced features, robust safety measures, and long-lasting performance make it the go-to choice for professionals requiring reliable and high-performance power sources in critical situations.

Choose the GS2020IM to ensure your life detector is always ready for action, providing the reliability and performance you need when lives are on the line. With its superior energy density, comprehensive safety features, and global certifications, the GS2020IM is the ideal power solution for life-saving technology.

Empower your life detection equipment with the GS2020IM – where reliability meets the ultimate test.

Cross Reference

The GS2020IM Medical Equipment Battery (10.8V,5.0Ah, Li-Ion) has been cross-referenced to be compatible with or replace these OEM part numbers and models:

OEM
AST DR202 BSI NL2020 Chem USA EMC36 Chicony SMP02
AST EMC36 BSI SMP02 Chem USA ME202BB CLEVO DR202
AST ME202BB Canon DR202 Chem USA NL2020 CLEVO EMC36
AST NL2020 Canon EMC36 Chem USA SMP02 CLEVO ME202BB
AST SMP02 Canon ME202BB Chicony DR202 CLEVO NL2020
BSI DR202 Canon NL2020 Chicony EMC36 CLEVO SMP02
BSI EMC36 Canon SMP02 Chicony ME202BB Commax DR202
BSI ME202BB Chem USA DR202 Chicony NL2020 Commax EMC36
Commax ME202BB CTX SMP02 DFI EMC36 Duracell NL2020
Commax NL2020 Daewoo DR202 DFI ME202BB Duracell SMP02
Commax SMP02 Daewoo EMC36 DFI NL2020 Epson DR202
CTX DR202 Daewoo ME202BB DFI SMP02 Epson EMC36
CTX EMC36 Daewoo NL2020 Duracell DR202 Epson ME202BB
CTX ME202BB Daewoo SMP02 Duracell EMC36 Epson NL2020
CTX NL2020 DFI DR202 Duracell ME202BB Epson SMP02
Hitachi DR202 JDSU LI202S-6600 KDS NL2020 Magitronic NL2020
Hitachi EMC36 JDSU LI202S66A KDS SMP02 Magitronic SMP02
Hitachi ME202BB KAPOK DR202 Kiwi DR202 MegaImage DR202
Hitachi NL2020 KAPOK EMC36 Kiwi EMC36 MegaImage EMC36
Hitachi SMP02 KAPOK ME202BB Kiwi ME202BB MegaImage ME202BB
IDP DR202 KAPOK NL2020 Kiwi NL2020 MegaImage NL2020
IDP EMC36 KAPOK SMP02 Kiwi SMP02 MegaImage SMP02
IDP ME202BB KDS DR202 Magitronic DR202 Micro Int DR202
IDP NL2020 KDS EMC36 Magitronic EMC36 Micro Int EMC36
IDP SMP02 KDS ME202BB Magitronic ME202BB Micro Int ME202BB
Micro Int NL2020 Northgate ME202BB NTK ME202BB Sager ME202BB
Micro Int SMP02 Northgate NL2020 NTK NL2020 Sager NL2020
Motorola HKNN4004A Northgate SMP02 NTK SMP02 Sager SMP02
Multi Media DR202 NorthStar DR202 Olivetti DR202 Samsung DR202
Multi Media EMC36 NorthStar EMC36 Olivetti EMC36 Samsung DR202s
Multi Media ME202BB NorthStar ME202BB Olivetti ME202BB Samsung EMC36
Multi Media NL2020 NorthStar NL2020 Olivetti NL2020 Samsung LIP967
Multi Media SMP02 NorthStar SMP02 Olivetti SMP02 Samsung ME202BB
NEC DR202 NoteBook Co. DR202 Pico DR202 Samsung NJ1020
NEC EMC36 NoteBook Co. EMC36 Pico EMC36 Samsung NL2020
NEC ME202BB NoteBook Co. ME202BB Pico ME202BB Samsung SL202
NEC NL2020 NoteBook Co. NL2020 Pico NL2020 Samsung SL36
NEC SMP02 NoteBook Co. SMP02 Pico SMP02 Samsung SMP202
Northgate DR202 NTK DR202 Sager DR202 Samsung SMP36
Northgate EMC36 NTK EMC36 Sager EMC36 Samsung SP202B
Samsung SSB-V20CLS/E Tatung NL2020 Trigem NL2020 Wedge Tech NL2020
Samsung SSB-V20KLS Tatung SMP02 Trigem SMP02 Wedge Tech SMP02
Smart Tec DR202 Tiger DR202 Trogon DR202 Wedge Tech DR202
Smart Tec EMC36 Tiger EMC36 Trogon EMC36 Wedge Tech EMC36
Smart Tec ME202BB Tiger ME202BB Trogon ME202BB Wedge Tech ME202BB
Smart Tec NL2020 Tiger NL2020 Trogon NL2020 Trigem DR202
Smart Tec SMP02 Tiger SMP02 Trogon SMP02 Trigem EMC36
Sys-Tech DR202 TJ Technolo DR202 Twinhead DR202 Trigem ME202BB
Sys-Tech EMC36 TJ Technolo EMC36 Twinhead EMC36 Tatung DR202
Sys-Tech ME202BB TJ Technolo ME202BB Twinhead ME202BB Tatung EMC36
Sys-Tech NL2020 TJ Technolo NL2020 Twinhead NL2020 Tatung ME202BB
Sys-Tech SMP02 TJ Technolo SMP02 Twinhead SMP02

This battery can be used in these models:

Laptop
AST A42 CLEVO 66 Daewoo 7550 Hitachi Plus Series
AST A51 CLEVO 82 Daewoo 7750 Hitachi Pro Series
AST A60 Plus CLEVO 82H DFI NB6600 Hitachi VisionBook 133
AST Ascentia A41 CLEVO 86 DFI NB6620 IDP Vaquero
AST M5XXX CLEVO 862 Duracell DR-202 KAPOK 6100
AST M6XXX CLEVO 863 Epson 512ST KAPOK 6200
BSI NB8600 CLEVO 86A Epson 513ST KAPOK 6200A
Canon NoteJet III CLEVO 870 Epson Pro C KAPOK 6200M
Canon NoteJet III CX CLEVO 873 Epson Pro CX KAPOK 6400M
Canon P120 CLEVO 875 Epson Vividy Note 510ED KAPOK 6800M
Chem USA ChemBook 5400 CLEVO 96 GETAC M230 KAPOK 7200
Chem USA ChemBook 5580 CLEVO 96H GETAC S400 KAPOK 7600
Chem USA ChemBook 6800 CLEVO 98 GETAC V100 KAPOK 7800
Chicony 1500 CTX NB8600 GETAC V1010 KDS 5240AS
KDS Valiant 5240 CTX SmartBook V GETAC V200 KDS 5340
Kiwi OpenNote 820 Multi Media Media Topline 86 GETAC X500 KDS 5340AS
Magitronic 600 NEC Ready 440T Hitachi Aquarius Series KDS 5345
Magitronic 610 Northgate NB86 Hitachi Athena Series KDS 5347
Magitronic 620 NorthStar Aries Series Hitachi Flora ND1 KDS 5350
MegaImage Apollo NoteBook Co. 6400AT Hitachi Flora ND2 KDS 6370
MegaImage MegaBook 911 NTK submarine Hitachi Flora-230 KDS 6370iPT
Micro Int Mint 6200 Olivetti Xtrema 423S ME202BB Hitachi Flora-270 KDS 6380
Motorola L3393 Pico 668 ME202BB Samsung SENS PRO 500 KDS 6380iPTD
Motorola L3394 Sager NP6200 Samsung SENS PRO 522 KDS 6480
Motorola ML900 Sager NP660/862 Samsung SENS PRO 523 KDS 6480iPTD
Motorola Mobile Laptop 900 Sager NP8100 Samsung SENS PRO 524 KDS 6481
Tiger DesigNote Series Sager NP8300 Samsung SENS PRO 525 KDS 6481CiPTD
Tiger GT Series Sager NP8600 Smart Tec GreenNote KDS 671
TJ Technolo TekBook 822 Sager PC-M200 Sys-Tech Ranger i-Note KDS 671DP
Trigem TekBook 822 Twinhead N2700 Tatung TNB-5500 KDS 671XH
Trogon E12 Series Wedge Tech PowerBook 5 CD Tatung TNB-5600 KDS 681
Information
Factory capacity 20%~30%
Certification CE/FCC/IEC62133/UN38.3
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 10.8V
Rated capacity 9000mAh
Nominal capacity 9300mAh
Internal resistance <200mΩ@1kHz at 25℃
Maximum charging current 6.51A
Maximum charging voltage 12.6V
Maximum discharge current 8.0A
Cycle life 1000 cycles≥70% Rated capacity
  (Charge: 0.5C, 12.60V, 465mA cut-off. Discharge: 1C 9.00V cut-off.)

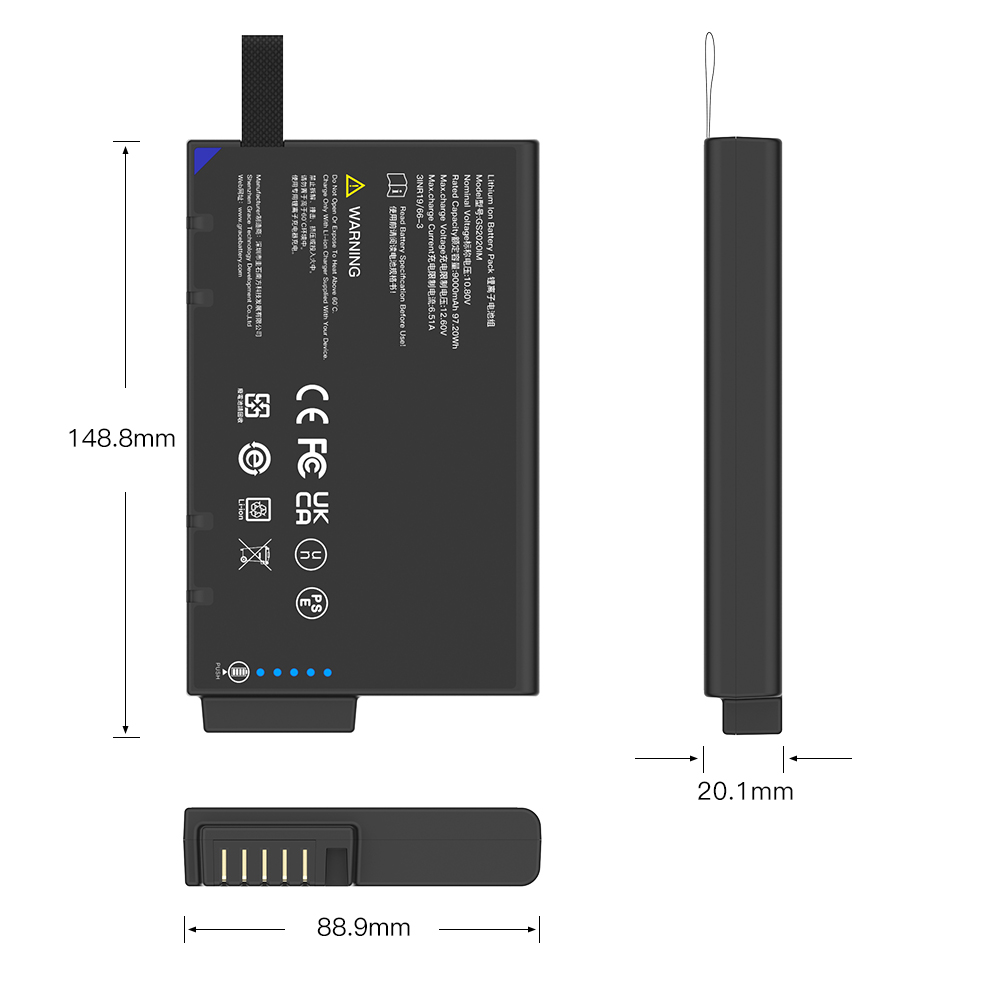

Dimensions
Length 148.8mm ± 0.3mm
Width 88.9mm ± 0.3mm
Thickness 20.1mm ± 0.3mm
Weight 500g±10g
Interface
