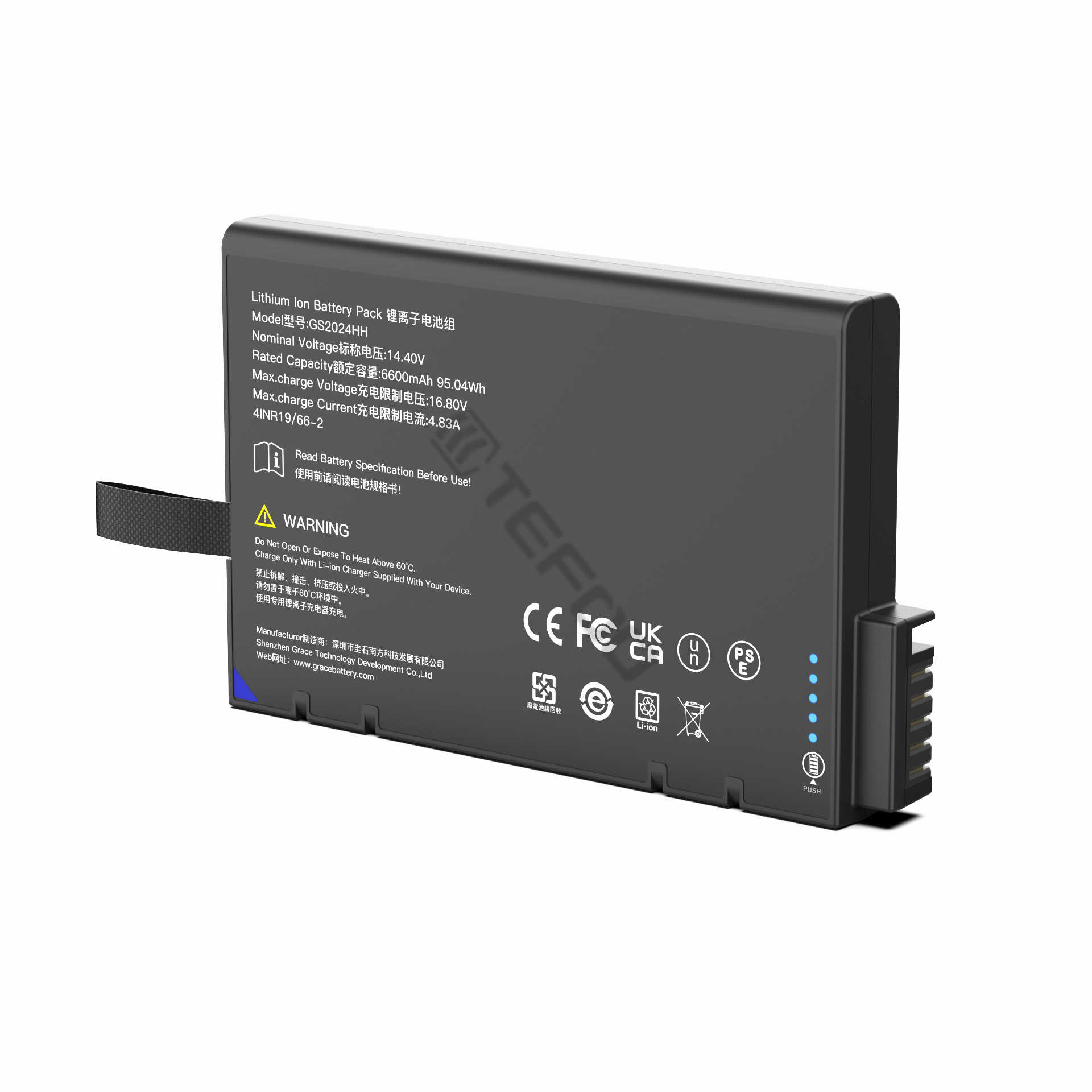

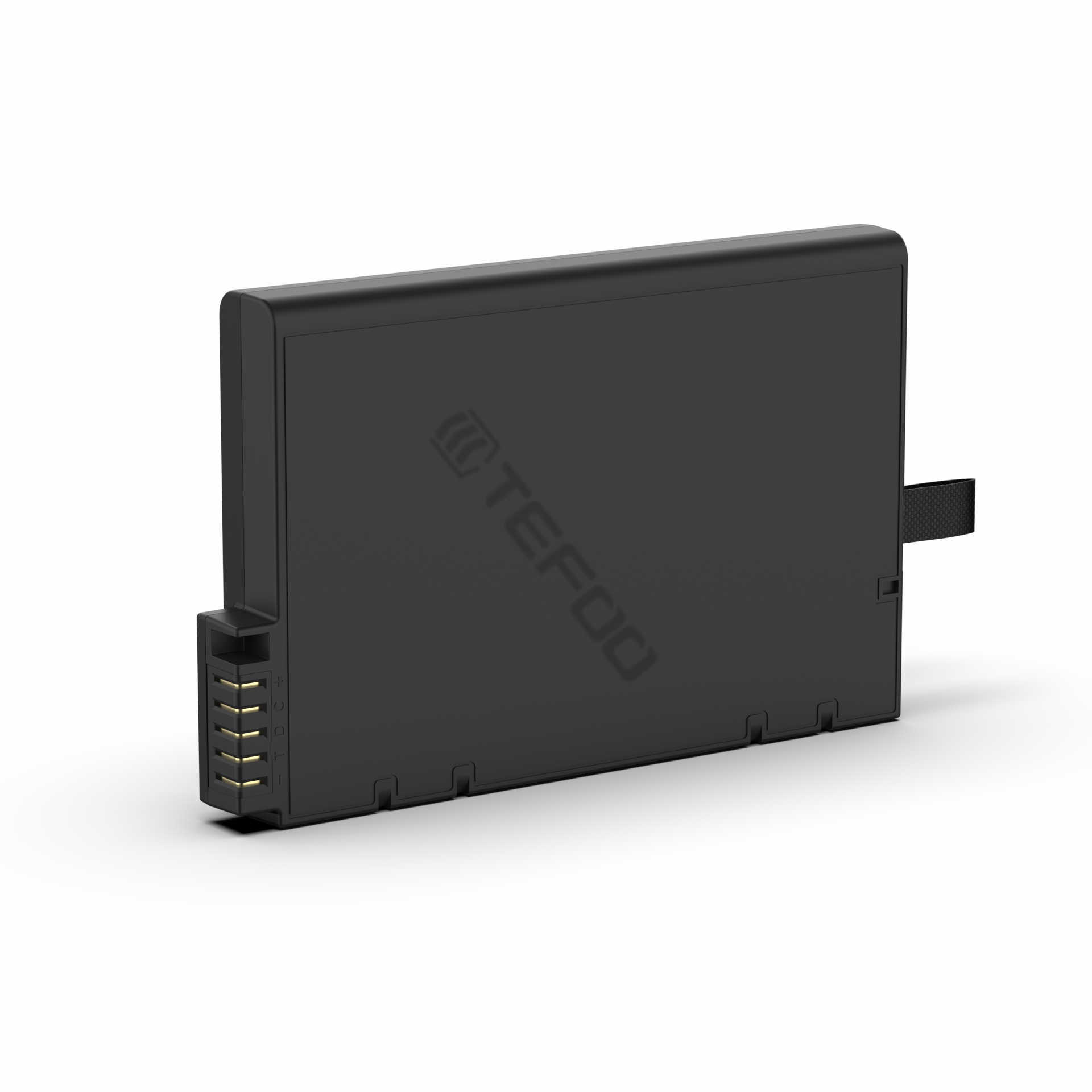

Standard battery pack GS2024HH

Standard battery pack GS2024HH


The 4S2P Standard battery pack GS2024HH—a versatile and customizable power solution designed to meet the diverse needs of both medical and industrial applications. Whether you’re powering non-invasive ventilators, patient warming systems, PCR machines, POC medical carts, fire and rescue equipment, or particle counters, the GS2024HH is engineered to deliver reliable and efficient performance.

Key specifications

Combination:4S2P
Energy: 95.04Wh
Nominal Voltage: 14.4V
Rated Capacity: 6900mAh
Max.charge Voltage: 16.8V
Max.charge Current: 4.8A

GS2024HH is approved worldwide

Description

Key Features and Benefits of 4S2P Standard battery pack GS2024HH

  • Certified Safety and Reliability: The 4S2P Standard battery pack GS2024HH is IEC62133/UN38.3 certified and CCC certified, ensuring it meets the highest safety and reliability standards.
  • Easy Integration: Equipped with a standard SMBus v1.1 interface, the battery pack integrates seamlessly with a wide array of devices.
  • Visual Monitoring: An integrated LED state of charge (SOC) indicator allows for quick and easy visual monitoring of battery status.
  • High-Energy Density Cells: Utilizing high-energy density and stable Panasonic cells, the GS2024HH ensures prolonged usage and dependable power output.
  • Efficient Charging: Employing JEITA charging optimization rules, the battery pack charges efficiently, extending its overall lifespan.
  • Comprehensive Safety Protection: The battery pack includes robust safety protection functions—overcharge, over-discharge, overcurrent, over-temperature, and short circuit protections.
  • Enhanced Performance: A balance function improves overall battery performance and longevity.
  • Accurate Monitoring: The high-precision fuel gauge provides accurate battery monitoring, ensuring you always know the power status.
  • Flexible Configuration: Multiple product profiles allow for customization to suit specific application needs.
  • Durable Construction: Built with robustness and reliability in mind, the GS2024HH also features power visualization for added convenience.
  • Easy Disassembly: A finger-type metal interface facilitates easy disassembly, making maintenance straightforward.
  • Enhanced Safety: Host-monitored battery temperature further enhances the safety profile of the battery pack.
  • Global Approvals: With worldwide approvals and certifications (UN38.8, UL, CE, CCC, etc.), the GS2024HH is ready for deployment across the globe.
  • Cost-Effective: No development, milling, or certification fees mean lower costs for you.
  • Immediate Availability: Stock availability with no minimum order quantity ensures you can get what you need when you need it.

For more information or to request a quote, please contact us today. Let the GS2024HH customizable battery pack empower your medical and industrial devices with unmatched reliability and efficiency.

Information
Factory capacity 20%~30%
Certification CE/FCC/IEC62133/UN38.3/RoHS/UKCA/PSE
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 14.4V
Rated capacity 6600mAh
Nominal capacity 6900mAh
Internal resistance <200mΩ@1kHz at 25℃
Maximum charging current 4.8A
Maximum charging voltage 16.8V
Maximum discharge current 20.0A
Cycle life 500 cycles≥80% Rated capacity

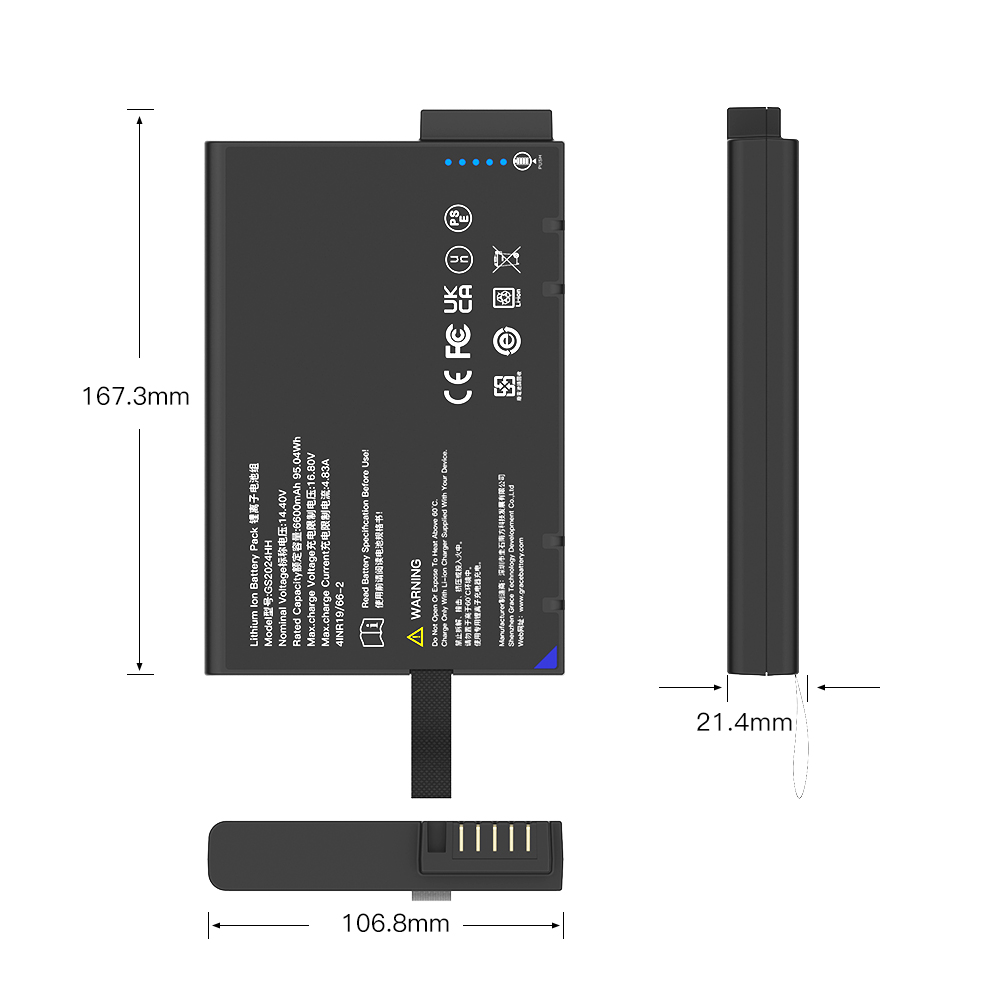

Dimensions
Length 167.3mm ± 0.3mm
Width 106.8mm ± 0.3mm
Thickness 21.4mm ± 0.3mm
Weight 450g±10g
Interface
