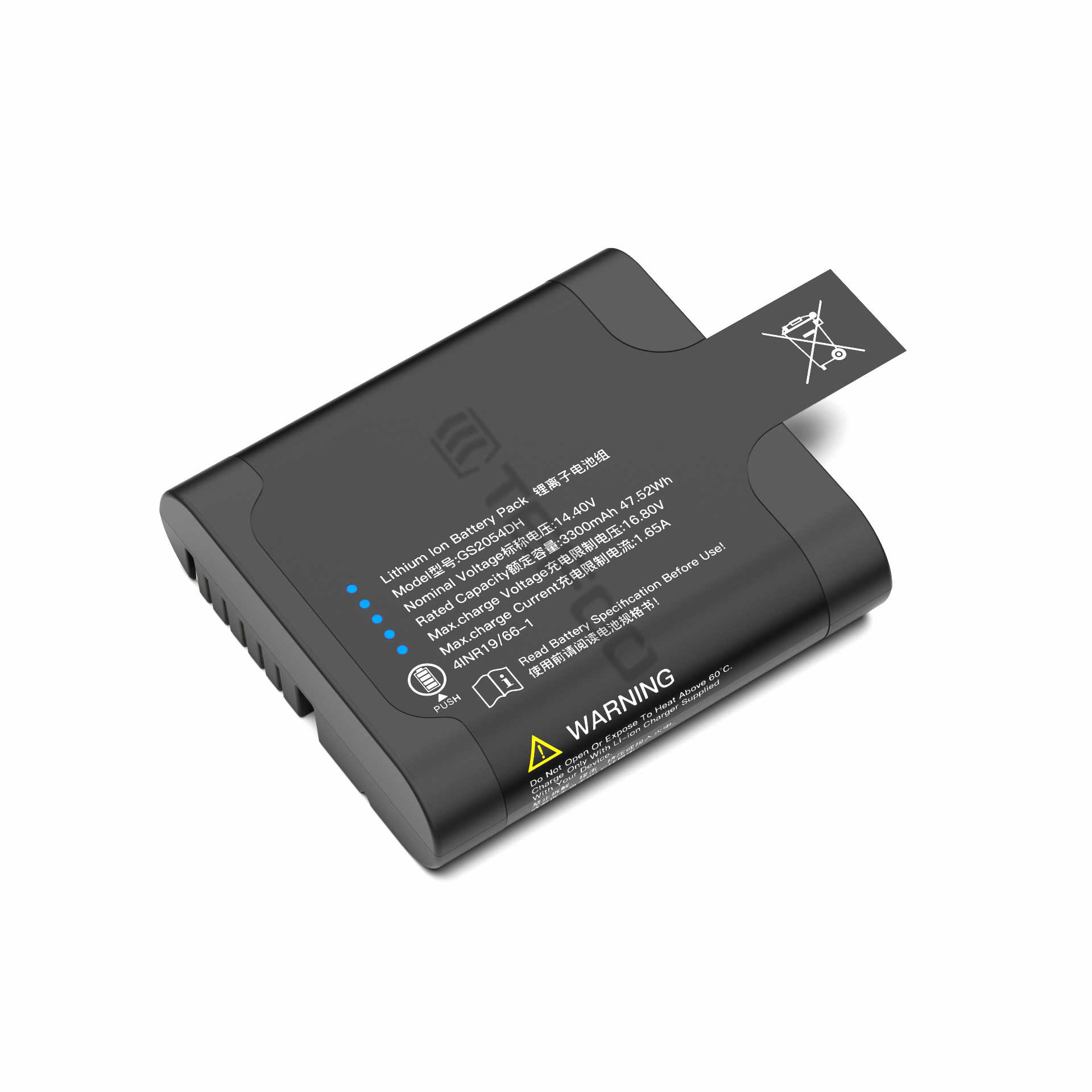

Standard battery pack GS2054DH

Standard battery pack GS2054DH


Introducing the GS2054DH Customizable Battery Pack, a premier power solution specifically engineered for CT scanners, High Flow Ventilator, Defibrillator, and Portable Coordinate Measuring Machine. This advanced battery pack is designed to meet the demanding energy requirements of medical imaging devices and physical detection equipment, ensuring uninterrupted performance and reliability.

Key Specifications

Combination: 4S1P
Energy: 47.52Wh
Nominal Voltage: 14.4V
Rated Capacity: 3300mAh
Max.charge Voltage: 16.8V
Max.charge Current: 1.65A

GS2054DH is approved worldwide

Description

The 4S1P Standard battery pack GS2054DH stands out with its innovative design, featuring a robust 4S1P structure and high-quality Panasonic cells. This combination ensures the highest energy density and stability, making it an ideal choice for critical medical applications. With global certifications and compliance with international safety standards, the GS2054DH is a trusted and reliable power solution for healthcare providers worldwide.

Features and Benefits

Global Certification Compliance

Certification Compliance: Meets safety standards in most countries, providing reliable performance and peace of mind.
Worldwide Approvals: Includes certifications such as UN38.8, UL, CE, CCC, and more, ensuring adherence to the highest safety and quality standards.

Advanced Interface and Monitoring

SMBus v1.1 Interface: Standardized communication protocol for seamless battery management and integration.
Integrated LED SOC Indicator: Built-in LED state of charge indicator for real-time monitoring of battery status.

Superior Cell Quality

Panasonic Cells: Utilizes Panasonic cells known for the highest energy density and stability, ensuring long-lasting and dependable power.
Energy Density: Maximizes power output while maintaining a compact and lightweight design.

Safety and Protection

Comprehensive Safety Functions: Includes overcharge, over-discharge, overcurrent, overtemperature, and short circuit protections to safeguard both the device and user.
Multiple Safety Redundancy Design: Ensures fail-safe operation and enhanced reliability.

Optimization and Longevity

JEITA Charging Rules: Optimizes charging processes to extend battery life and maintain peak performance.
Balance Function: Enhances battery lifespan by maintaining cell balance.
High Precision Fuel Gauge: Provides accurate monitoring of battery health and status.
Durability: Retains up to 80% of its initial capacity after 500 cycles, guaranteeing long-term reliability.

User-Friendly Design

Finger Type Metal Interface: Easy to disassemble design for quick and hassle-free maintenance.
Temperature Monitoring: Allows the host device to monitor battery temperature for improved safety and performance optimization.

Additional Benefits

No Additional Fees: No development fee, mill fee, or certification fee, ensuring cost-effective solutions.
Ready Stock: Immediate availability with no minimum order quantity (MOQ) limit.

Elevate the performance of your CT scanners with the GS2054DH Customizable Battery Pack. For more information or to request a quote, contact us today and discover how our solutions can power your medical innovations.

Keywords: Customizable battery pack, CT scanner battery, medical imaging power, Panasonic cells, safety certifications, SMBus interface, LED SOC indicator, high energy density, JEITA charging optimization, battery safety protection.

Information
Factory capacity 20%~30%

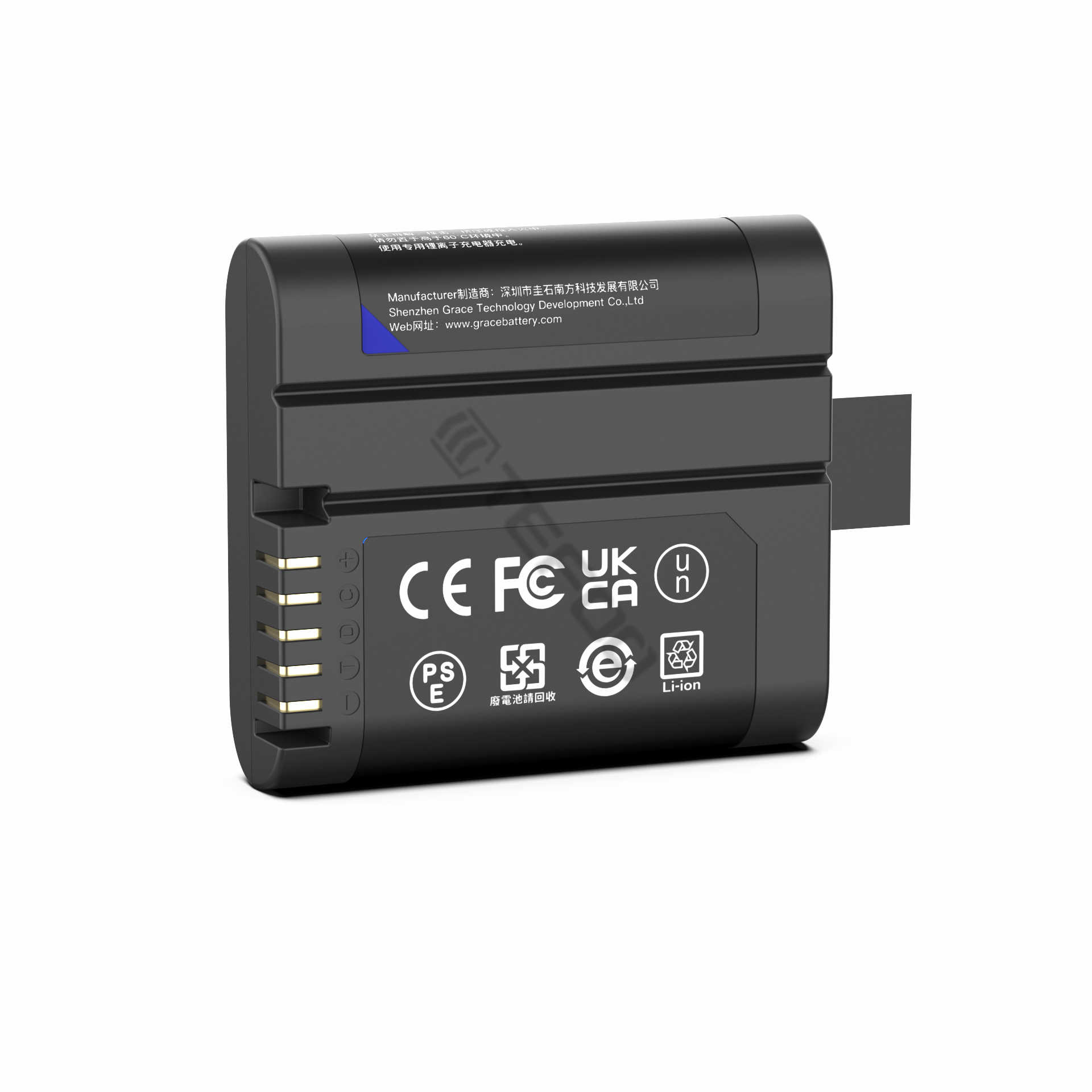

Certification CE/FCC/IEC62133/UN38.3/UKCA/PSE
Operating temperature 0°C~50°C (charge)
  -20°C~60°C (discharge)
Storage temperature -20°C~50°C(Maximum)
  -20°C~25°C(recommend)
Electrical parameters
Rated voltage 14.4V
Rated capacity 3300mAh
Nominal capacity 3450mAh
Internal resistance <250mΩ@1kHz at 25℃
Maximum charging current 1.65A
Maximum charging voltage 16.8V
Maximum discharge current 4.0A
Cycle life 500 cycles≥80% Rated capacity 100%DOD

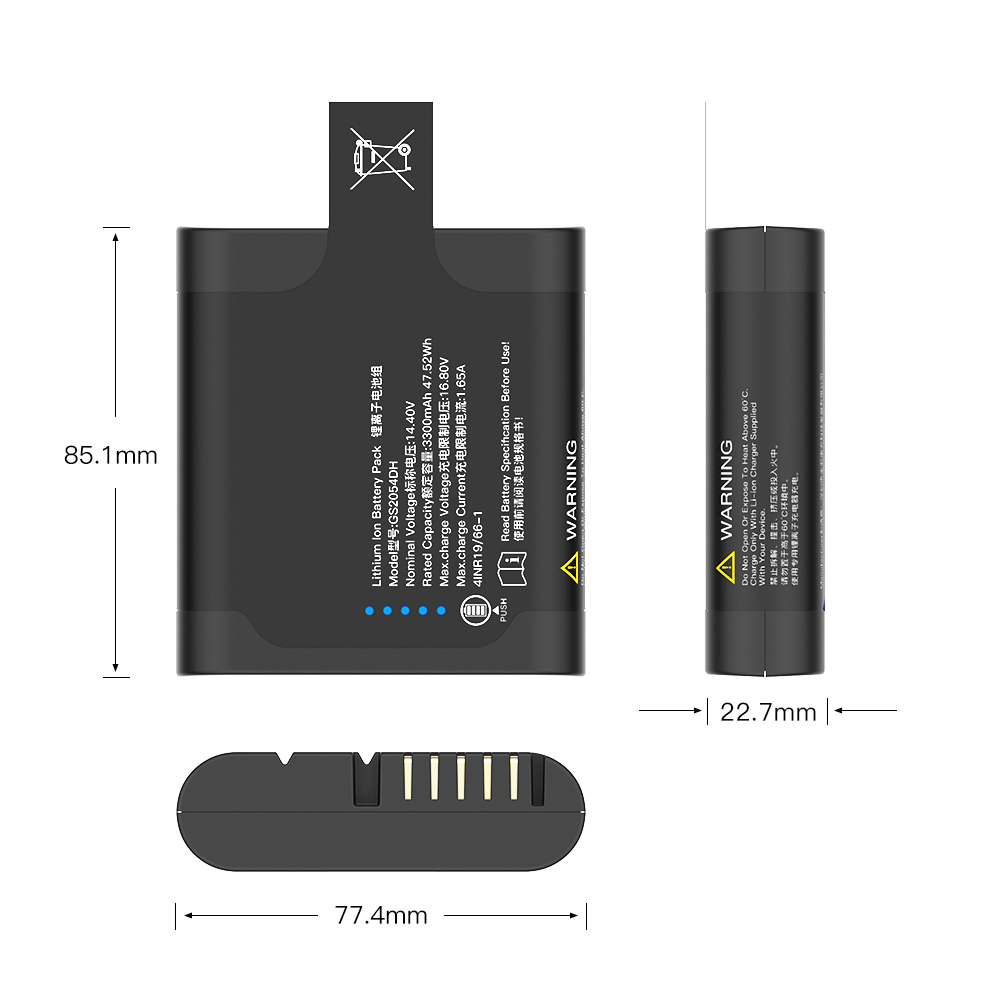

Dimensions
Length 85.1mm ± 0.3mm
Width 77.4mm ± 0.3mm
Thickness 22.7mm ± 0.3mm
Weight 235g±10g
Interface
