What Is an 18650 Battery Pack?

In practical applications, 18650 batteries are almost never used as individual cells. Instead, they are integrated into battery packs, which provide stable, controllable, and device-compatible power.

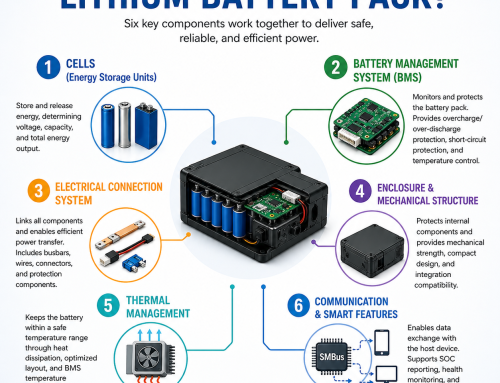

A complete 18650 battery pack typically includes several key components:

• Multiple cylindrical 18650 lithium-ion cells
• A Battery Management System (BMS) for protection and control
• Mechanical housing and electrical connectors
• Communication interfaces for system integration

While a single 18650 cell has a nominal voltage of approximately 3.6V–3.7V, most real-world devices operate at significantly higher voltages such as 7.2V, 10.8V, or 14.4V. These are achieved by combining multiple cells within a battery pack.

👉 Key takeaway:

In engineering applications, voltage and capacity are determined by the battery pack architecture—not by a single cell.

How Voltage Is Built in 18650 Battery Packs

The output voltage of a battery pack is determined by the number of cells connected in series (S configuration).

Each additional cell in series increases the total voltage. This allows engineers to match the battery pack to the voltage requirements of different devices.

Common configurations include:

These voltage platforms are widely used because they align with standard power system designs in professional equipment.

For example, test instruments often operate around 10.8V systems, while higher-demand medical devices may require 14.4V platforms for stable operation.

👉 Engineering principle:

• Voltage increases with series connection
• Pack voltage = cell voltage × number of series cells

Voltage Range and State of Charge (SOC)

Although voltage is often used as an indicator of battery level, it does not directly represent the actual remaining capacity of a lithium-ion battery.

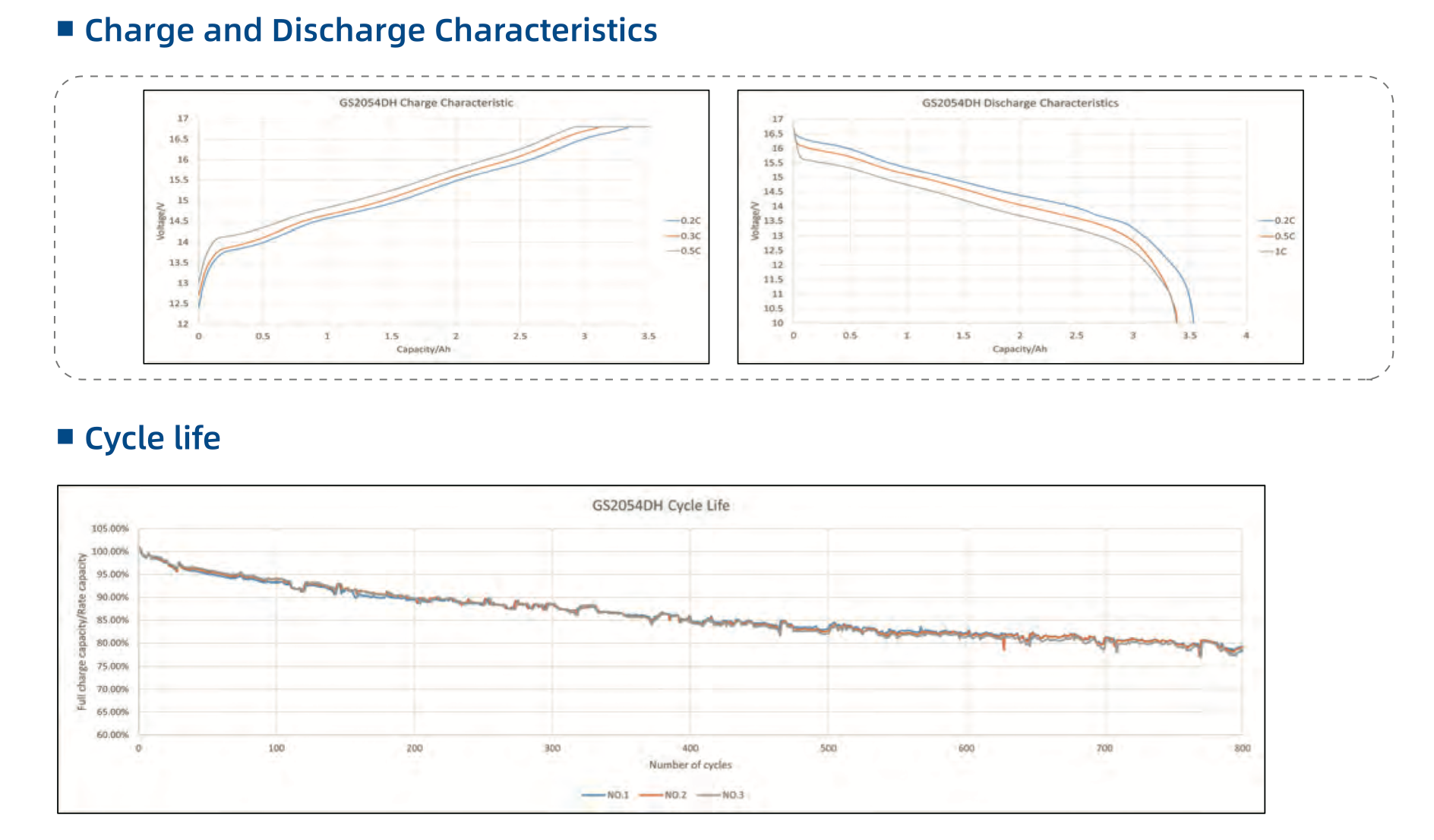

During discharge, the voltage typically follows three stages:

• High-voltage region: near full charge
• Stable plateau: where most operation occurs
• Rapid drop-off region: near depletion

For a single 18650 cell, this typically ranges from about 4.2V down to around 3.0V. When cells are connected in series, this entire curve shifts proportionally:

• 3S pack → approximately 12.6V to 9V
• 4S pack → approximately 16.8V to 12V

Because voltage alone is not precise, advanced battery packs often integrate fuel gauging systems, which combine voltage, current, and usage data to estimate the State of Charge (SOC) more accurately.

This is especially important in professional devices where unexpected shutdowns must be avoided.

Charging Voltage and Charging Method

18650 battery packs typically follow the CC/CV (Constant Current / Constant Voltage) charging method, which is the standard for lithium-ion systems.

Each pack configuration requires a corresponding charging voltage:

Charging occurs in two main phases:

• Constant current phase: the battery is charged quickly at a fixed current
• Constant voltage phase: voltage is held constant while current gradually decreases

In advanced battery systems, charging behavior is further optimized using intelligent control features:

• JEITA-based charging adjusts charging parameters based on temperature conditions
• SMBus communication allows the battery to exchange data with the host device
• The BMS continuously monitors safety parameters such as voltage, current, and temperature

These features are particularly important in applications such as medical equipment, where both safety and performance consistency are critical.

How Long Does It Take to Charge an 18650 Battery Pack?

Charging time is often misunderstood as a fixed specification, but in reality it depends on several system-level variables:

• External charging current
• Battery pack capacity (mAh)
• Series and parallel configuration
• BMS control and thermal conditions

👉 Correct understanding:

Charging time is determined by system design, not by the battery type alone.

For example, increasing the charging current can significantly reduce charging time, while higher-capacity battery packs naturally require longer charging durations.

With optimized charger design and proper current control, certain 18650 battery pack configurations can achieve:

⚡ Charging times as short as approximately 2 hours

However, this depends on safe operating conditions and appropriate system design, especially in high-reliability applications.

Why Voltage and Charging Design Matter in Real Devices

In professional applications such as medical devices and test equipment, battery performance directly impacts system reliability.

Well-designed voltage and charging systems help ensure:

• Stable device operation
• Accurate measurement results
• Safe usage under varying conditions
• Extended battery lifespan

For instance:

• Medical monitoring equipment requires stable voltage to avoid data inconsistencies
• Test instruments rely on accurate battery feedback to maintain measurement precision

As a result, many modern devices no longer use simple battery packs, but instead adopt intelligent battery systems capable of communication, monitoring, and adaptive charging.

Conclusion: Understanding Battery Packs Is Key to Performance

18650 cells are only the building blocks. The real performance of a battery system depends on how those cells are configured and managed within a battery pack.

• Voltage is defined by series configuration
• Capacity is defined by parallel configuration
• Charging performance depends on system design and control

For engineers and OEM manufacturers, understanding battery pack behavior is far more important than focusing only on individual cell specifications.
