Selecting between Samsung INR21700-50GB and 50E for custom industrial battery packs depends on batch consistency and DCIR stability. While both offer 5000mAh capacity, the 50GB cell provides tighter manufacturing tolerances ($\Delta\text{ACIR} \le 1.2\text{ m}\Omega$), lower DCIR variation, and enhanced cycle retention (>500 cycles at 80% DOD) under wide thermal swings (-20°C to 60°C). Paired with a smart SMBus v1.1 BMS and certified to IEC 62133-2 and UL 2054, the 50GB architecture ensures mission-critical reliability for infrared thermal imagers and railway inspection tools.
Why Does Cell Selection Matter for Infrared Thermal Imagers and Railway Inspection Tools?

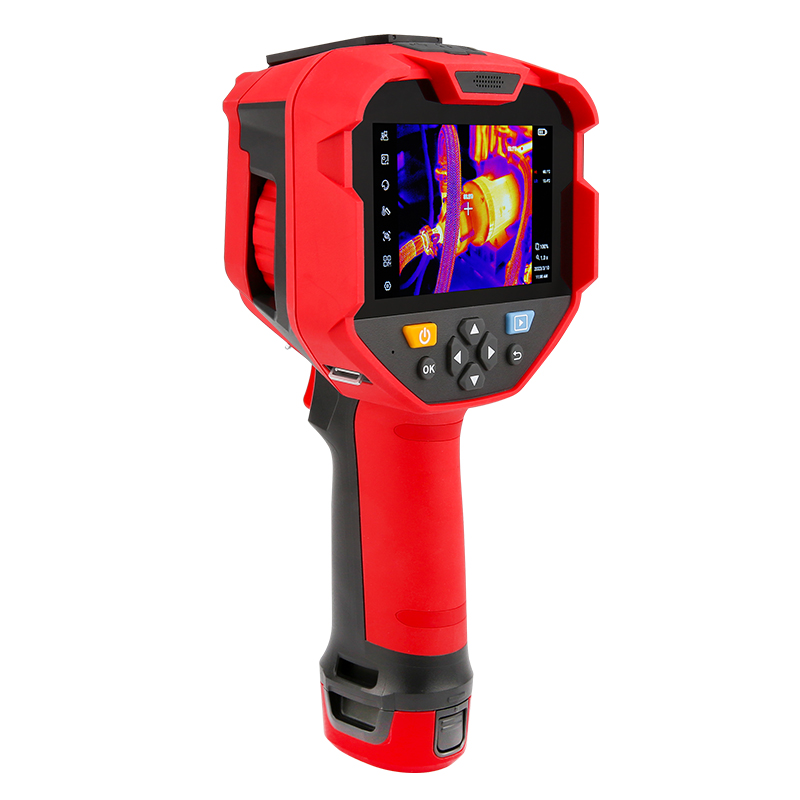

Field-deployed infrared thermal imagers and automated railway inspection instruments represent two of the most mechanically and electrically demanding environments for secondary lithium-ion battery packs. Infrared thermal imagers require low noise, ripple-free voltage rails to power sensitive cooled microbolometers and laser rangefinders. In contrast, track inspection carts and ultrasonic rail flaw detectors require continuous energy delivery while enduring severe structural vibration, ambient dust, moisture, and extreme sub-zero weather during extended field surveys.
Generic 21700 battery packs repeatedly fail in these field applications due to three critical engineering oversights:
-
Inconsistent Internal Resistance and Thermal Hot-Spotting: Commercial off-the-shelf 21700 packs often use loose cell sorting bands. Under dynamic pulse loads—such as driving high-brightness infrared optics or motorized railway sensor rigs—cells with higher internal resistance generate disproportionate $I^2 R$ heat. This creates localized thermal gradients within sealed IP67 enclosures, accelerating capacity fade and forcing early battery shutdowns.
-
Voltage Drops and Telemetry Errors in Sub-Zero Conditions: Railway inspection instruments frequently operate in environments down to -20°C. Unscreened high-density cells experience a sharp rise in DC Internal Resistance (DCIR) at low temperatures. Without dynamic BMS impedance tracking, the resulting transient voltage dip triggers premature Undervoltage Lockout (UVLO), stranding operators with false “empty battery” readings despite substantial remaining chemical energy.
-
Vibration Fatigue on Interconnects: Railway track inspection equipment subjects battery packs to continuous low-frequency impact shocks and harmonic vibration sweeps (7Hz to 200Hz). Unreinforced battery designs utilizing basic shrink-wrap casing suffer spot-weld fractures along busbars, causing open-circuit power loss or dangerous internal short circuits.
Building a dependable power system for these environments requires choosing the correct 21700 cell variant—such as comparing the Samsung INR21700-50GB against the standard 50E—and surrounding it with precision cell sorting, intelligent BMS telemetry, and structural DFM containment.
How Does Samsung INR21700-50GB Compare to 50E in Engineering Specifications?
Both the Samsung INR21700-50E and INR21700-50GB are high-density $5000\text{ mAh}$ cylindrical cells utilizing Nickel-Manganese-Cobalt (NMC) cathode chemistry. However, while the 50E is a widely adopted commercial cell for standard industrial applications, the 50GB variant features refined manufacturing controls, lower impedance growth rates over extended cycling, and improved high-pulse thermal stability.
+-------------------------------------------------------------------------+
| CELL-TO-PACK SCREENING & SORTING FLOW |
+-------------------------------------------------------------------------+
| Incoming Samsung 21700 Batch (50GB vs 50E) |
| | |
| v |
| 4-Wire Kelvin Sensing (Delta ACIR <= 1.2 mOmega) |
| | |
| v |
| Open-Circuit Voltage Matching (Delta Voc <= 3 mV at 23°C +/- 2°C) |
| | |
| v |
| High-Current Pulsed DCIR Verification (Delta DCIR <= 5%) |
+-------------------------------------------------------------------------+
When designing high-reliability multi-cell series/parallel configurations (such as 4S2P, 7S2P, or 10S3P), cell consistency is paramount. The table below compares the engineering parameters of both cells and illustrates their impact on custom pack design.
| Specification Parameter | Samsung INR21700-50E (Standard) | Samsung INR21700-50GB (OEM Grade) | Engineering Impact on Custom Battery Packs |
| Nominal Voltage / Energy | $3.63\text{ V} / 18.15\text{ Wh}$ | $3.63\text{ V} / 18.15\text{ Wh}$ | Identical system voltage architecture and pack energy density (~700 Wh/L) |
| Typical Capacity | $4900\text{ mAh} – 5000\text{ mAh}$ | $5000\text{ mAh}$ | 50GB provides tighter capacity grouping across production lots |
| Max Continuous Discharge | $9.8\text{ A}$ ($1.96\text{C}$) | $9.8\text{ A}$ (Continuous) / $14.7\text{ A}$ (Pulse) | 50GB accommodates transient motor compressor and optics pulse spikes |
| AC Internal Resistance ($\Delta\text{ACIR}$) | $\le 25.0\text{ m}\Omega$ ($\pm 8\%$ batch spread) | $\le 18.0\text{ m}\Omega$ ($\le \pm 3\%$ batch spread) | 50GB reduces sorting scrap rates and eliminates parallel current hogging |
| Low-Temp Retention (-20°C) | ~60% capacity retention | ~70% capacity retention | 50GB extends outdoor winter runtime for railway inspection tools |
| Cycle Life ($0.5\text{C}$ @ 80% DOD) | ~500 cycles | $> 500\text{ cycles}$ (Lower DCIR degradation) | 50GB slows capacity roll-off in heavily cycled industrial instruments |
| Cell Safety Listing | UL 1642, UN 38.3 | UL 1642, UN 38.3 | Provides prerequisite cell-level compliance for pack-level UL 2054 testing |
While the Samsung 50E remains a cost-effective option for standard industrial devices, the Samsung 50GB is the preferred choice for mission-critical infrared thermal imagers and railway measurement systems. Its lower baseline impedance and strict factory consistency reduce passive balancing losses and minimize thermal hot-spotting inside sealed housings.
How Does Smart BMS Telemetry and Dual-Layer Safety Protect 21700 Industrial Packs?
Integrating high-energy 21700 cells into industrial equipment requires an intelligent Battery Management System (BMS) that provides precise power telemetry while protecting against electrical and thermal faults.
+-------------------------------------------------------------------------+
| HOST EQUIPMENT CONTROLLER (Imager / Railway) |
+-------------------------------------------------------------------------+
^ ^ ^
SMBus v1.1 / I2C Hardware Interlock SHA-1 Handshake
v v v
+-------------------------------------------------------------------------+
| SMART BMS CONTROLLER BOARD |
| +-----------------------+ +------------------+ +------------------+ |
| | Gas Gauge (Coulomb) | | Dual-FET Switching| | SHA-1 Crypto IC | |
| +-----------------------+ +------------------+ +------------------+ |
| +-----------------------+ +------------------+ +------------------+ |
| | Triple NTC Sensing | | Secondary Fuse | | Active Balancer | |
| +-----------------------+ +------------------+ +------------------+ |
+-------------------------------------------------------------------------+
|
[ Matched Samsung 21700 50GB / 50E Cell Array ]
SMBus v1.1 and $\text{I}^2\text{C}$ Smart Battery Telemetry
By utilizing the Smart Battery Data (SBD) protocol over SMBus v1.1 or $\text{I}^2\text{C}$, the BMS delivers real-time operational status directly to the host device microcontroller:
-
Impedance-Compensated State of Charge (SOC): Gas gauge ICs combine high-speed coulomb counting with dynamic impedance tracking to maintain SOC estimation accuracy within $\pm 1\%$. This prevents false battery depletion alarms when railway inspection tools experience high torque loads or low temperatures.
-
State of Health (SOH) and Predictive Logging: Tracks cumulative cycle count, internal DCIR growth, and historical peak temperature exposures, enabling predictive maintenance before field failure occurs.
-
System Warning Flags: Transmits early warning interrupts to the host system prior to triggering hard cutoffs, allowing optical imaging equipment to safely complete file writes and shutter sequences.
Multi-Tier Hardware Safety Architecture
To comply with global medical and industrial electrical standards, custom BMS boards implement single-fault-tolerant protection:
-
Primary Charge/Discharge Control: Precision Analog Front-End (AFE) ICs manage dual N-channel power MOSFET switches. Overcharge protection isolates charging at $4.25\text{V} \pm 0.025\text{V}$ per cell, while overdischarge protection cuts off load at $2.50\text{V} \pm 0.05\text{V}$ per cell.
-
Secondary Hardware Lockout: An independent secondary protection IC acts as a backup monitor. If primary switching MOSFETs fail during an overcharge event, the secondary circuit permanently blows a self-clearing chemical fuse at $4.30\text{V} \pm 0.015\text{V}$.
-
Triple-Point NTC Thermal Monitoring: Independent NTC thermistors track temperature across the cell matrix center, protection MOSFETs, and ambient internal housing. Charging is permitted only between $0^\circ\text{C}\text{ and }45^\circ\text{C}$, while discharging operates from $-20^\circ\text{C}\text{ to }60^\circ\text{C}$.
-
Ultra-Low Quiescent Current: Upon reaching undervoltage limits, the BMS enters a deep ship state with quiescent current $I_q < 1\ \mu\text{A}$, preventing anode copper dissolution during long-term warehouse storage.
SHA-1 / HMAC-SHA-256 Cryptographic Authentication
To protect OEM equipment from unauthorized, substandard third-party replacement packs, the BMS incorporates a hardware-based SHA-1 or HMAC-SHA-256 crypto-authentication IC. Host firmware executes a challenge-response handshake upon battery insertion; unauthenticated packs trigger safety locks or restrict device operation to emergency low-power modes.
What Is the Global Safety Certification Workflow for Custom 21700 Packs?
Exporting medical thermal imaging equipment and railway measurement systems to international markets requires full compliance with electrical, mechanical, and transport safety standards. Designing battery packs around these compliance frameworks from day one avoids costly mechanical re-tooling late in the product development cycle.
[ Custom 21700 Battery Pack Design Architecture ]
|
+---> UL 1642 (Component Cell Safety: Samsung 50GB/50E)
| |- Mechanical Impact, Crushing, & Thermal Exposure
|
+---> UN 38.3 (Mandatory Dangerous Goods Transport Testing)
| |- T.1 to T.5: Altitude, Thermal (-40°C to 72°C), Vibration, Shock
| |- T.6 to T.8: Impact, Overcharge, Forced Discharge
|
+---> IEC 62133-2 (Global Baseline for Portable Industrial/Medical Packs)
| |- Molded Case Stress at 70°C
| |- External Short Circuit at 55°C
| |- Mechanical Drop & Thermal Abuse Testing
|
+---> UL 2054 (North American Commercial & Industrial Pack Safety)
|- Single-Fault Component Failure Testing
|- Abusive Overcharge & Forced Discharge
|- Enclosure Material Flammability (UL 94 V-0)
UL 1642 Cell Component Safety
Both the Samsung INR21700-50E and 50GB are listed under UL 1642. This cell-level certification verifies that the raw cell construction resists internal short circuits under severe mechanical impact, thermal shock ($130^\circ\text{C}$ holding test), and electrical abuse.
IEC 62133-2 (Second Edition) Certification
IEC 62133-2 is the global benchmark safety standard for portable secondary lithium batteries used in medical and industrial devices. Mandatory evaluations include:
-
Molded Case Stress Test: The fully assembled pack is held at $70^\circ\text{C} \pm 2^\circ\text{C}$ for 7 hours to ensure no enclosure warping or exposure of live internal circuits occurs.
-
External Short Circuit at $55^\circ\text{C}$: The pack is short-circuited at elevated temperatures with total external loop resistance $< 80\text{ m}\Omega$. The BMS must safely interrupt short-circuit current without flame or explosion.
-
Drop Testing: Fully assembled packs are dropped from a height of $1.0\text{ meter}$ onto concrete in multiple orientations to confirm structural integrity.
UL 2054 Industrial Pack Safety
UL 2054 governs commercial and industrial battery pack safety in North America, focusing on single-fault tolerance. Testing bodies intentionally short-circuit primary protection MOSFETs or bypass current-sense resistors to confirm that secondary fuses or thermal cutouts safely isolate the circuit. Furthermore, all plastic housing materials and internal cell holders must carry a certified UL 94 V-0 flame-retardant rating.
UN 38.3 Transport Testing Protocol
UN 38.3 compliance is legally required for shipping lithium-ion battery assemblies via air, sea, or land freight. The testing regime includes eight sequential tests:
-
Altitude Simulation (T.1): Storage at $11.6\text{ kPa}$ low pressure for $> 6\text{ hours}$.
-
Thermal Shock (T.2): Rapid thermal cycling between $72^\circ\text{C} \pm 2^\circ\text{C}$ and $-40^\circ\text{C} \pm 2^\circ\text{C}$.
-
Vibration (T.3): Logarithmic sinusoidal sweeps from $7\text{ Hz}$ to $200\text{ Hz}$ across 3 orthogonal axes over 3 hours per axis.
-
Mechanical Shock (T.4): Half-sine shock pulses ($150\text{ g}_n$ peak acceleration) applied to each axis.
-
External Short Circuit (T.5): Short circuit applied at $57^\circ\text{C} \pm 4^\circ\text{C}$.
-
Impact / Crush (T.6): Cell-level mechanical integrity testing.
-
Overcharge (T.7): Charge current applied at twice maximum continuous specification for 24 hours.
-
Forced Discharge (T.8): Forced discharge at maximum rated current.
How Does DFM Engineering and 3D CAD Integration Accelerate OEM Product Launches?
Integrating a 21700 battery pack into a ruggedized infrared camera or track inspection cart requires close mechanical co-design between the battery manufacturer and the host equipment engineering team.
[ Host Equipment Enclosure Envelope ]
|
v
[ 2D Production Drawings / 3D STEP CAD Exchange ]
|
v
[ DFM Analysis: Structural, Thermal, & Electrical ]
* Injection-Molded PC/ABS (UL 94 V-0 Flame Rating)
* Interlocking Cell Matrix Holders with Rubber Isolation
* Flexible Printed Circuit (FPC) Cell-Tapping Harness
* Continuous Silicone Gasket (IP67 Ingress Protection)
|
v
[ Rapid Prototyping & Pre-Compliance Pre-Certification Testing ]
Enclosure Materials and Ingress Protection (IP67)
Outdoor inspection equipment demands lightweight, drop-resistant, and weather-sealed housings:
-
Enclosure Materials: Injection-molded Polycarbonate/ABS (PC/ABS) blends provide exceptional impact resistance, dimensional stability, and intrinsic UL 94 V-0 flame retardancy.
-
IP67 Environmental Sealing: Tongue-and-groove joint profiles fitted with continuous molded silicone gaskets or liquid-dispensed polyurethane seals prevent dust ingress and resist water immersion down to $1\text{ meter}$ for 30 minutes.
-
Vibration and Shock Isolation: Cells are held in modular structural retainers and cushioned by closed-cell EVA foam or silicone pads to absorb drop impact forces and isolate motor vibration.
Flexible Printed Circuits (FPC) vs. Wiring Harnesses
Replacing traditional discrete copper wiring harnesses with multi-layer Flexible Printed Circuits (FPC) for cell voltage sampling and NTC connections delivers major structural benefits:
-
Eliminates manual wiring assembly errors on production lines.
-
Reduces internal wiring volume by up to $70\%$, allowing a more compact overall pack envelope.
-
Prevents wire-chafing fatigue fractures caused by continuous harmonic vibration during railway track monitoring.
Design for Manufacturability (DFM) Workflow
To streamline host device integration, custom battery manufacturers provide full 2D production drawings and 3D native CAD files (STEP / IGES) during early mechanical layout phases. This enables OEM engineers to perform virtual fit checks, run clearance stress analyses, and optimize thermal pathways prior to cutting hard tooling. Functional engineering prototypes are typically delivered within 2 to 4 weeks for internal validation and pre-certification testing.
Frequently Asked Questions (FAQ)
How does the Samsung INR21700-50GB outperform the 50E in custom battery pack manufacturing?
The Samsung 50GB offers tighter factory internal resistance tolerances ($\le \pm 3\%$) and lower lot-to-lot DCIR variance compared to the 50E. This minimizes cell-sorting overhead during pack assembly, reduces current hogging in parallel strings, and extends cycle life in high-reliability field instruments.
Why is UL 1642 cell certification essential when submitting a 21700 pack for UL 2054 testing?
UL 2054 evaluates complete battery pack safety but requires all lithium-ion cells to be individually certified under UL 1642. Using UL 1642 listed cells like the Samsung 50GB or 50E eliminates redundant cell-level destructive testing, significantly reducing UL 2054 certification timelines and compliance costs.
How do custom 21700 battery packs maintain voltage stability during railway inspection in sub-zero temperatures (-20°C)?
Custom packs combine high-discharge 21700 cells with low-temperature electrolyte formulations, low-impedance nickel-copper composite busbars, and insulated IP67 PC/ABS housings. Integrated BMS heating logic or low-temperature firmware limits ensure stable voltage delivery without triggering false undervoltage cutoffs during sub-zero field operation.
What is the standard lead time for receiving 3D STEP models and functional 21700 battery prototypes?
Initial 3D STEP CAD files and 2D manufacturing drawings are delivered within 3 to 5 business days for mechanical envelope verification. Fully functional engineering prototypes with custom BMS firmware and IP67 enclosures are completed in 2 to 4 weeks for internal validation and pre-certification testing.
Accelerate Your Thermal Imaging and Railway Instrument Development
Designing a safe, high-performance 21700 lithium battery pack for thermal imagers or railway inspection tools requires specialized engineering expertise spanning cell matching, BMS firmware design, regulatory compliance, and mechanical housing integration.
Ready to advance your custom industrial battery project?
-
Request 3D STEP CAD Files: Submit your spatial enclosure constraints for immediate 3D CAD integration.
-
Custom BMS Telemetry Alignment: Consult with our senior power engineers to map SMBus/$\text{I}^2\text{C}$ registers to your host system architecture.
-
Access Regulatory Test Data: Review complete IEC 62133-2, UL 2054, and UN 38.3 qualification test packages.
Contact our engineering team today to review your specification sheet or schedule a technical consultation.
