What Are the 9 Core Multimodal Data Collection Modules for Embodied AI?
Capturing complex human physical behavior for neural networks requires hardware engineers to deploy synchronized multimodal sensor streams rather than basic single-camera setups. Embodied AI systems must perceive their environment, understand spatial relationships, manipulate objects, and make real-time decisions. To achieve this, enterprise data collection platforms integrate nine distinct hardware modules across visual, kinematic, acoustic, and bioelectric domains to generate machine-readable behavioral cloning datasets.
How Do Visual and Spatial Modules Capture the Operational Environment?
Panoramic Image Modules
Panoramic image modules record the overall environmental layout and the global spatial information of the robotic operational scene. While local sensors focus on the human operator’s hands, the panoramic module utilizes wide-angle lenses to map the entire room boundaries, fixed obstacles, and ambient lighting conditions. This global visual data teaches the foundation model how to navigate macro-environments before initiating micro-manipulation tasks.
First-Person Visible Light Modules
First-person visible light modules capture the exact color video stream from the human operator’s primary perspective to provide a reference frame for robotic operation. Specifically, RGB cameras gather images and video streams to enable visual perception and object recognition for the AI. By mounting these visible light modules directly on the operator’s headgear, the system records the exact optical approach angles human workers use when identifying target objects.
First-Person Depth Image Modules
First-person depth image modules capture the three-dimensional spatial outline and physical distance of objects from the operator’s viewpoint. Standard two-dimensional video cannot calculate physical proximity; therefore, depth cameras collect precise distance and 3D depth information to execute spatial estimation. This volumetric data is mandatory for calculating robotic arm extension vectors and preventing physical collisions during deployment.
How Do Kinematic and Tactile Modules Record Human Physical Interactions?
Hand Tactile Collection Modules
Hand tactile collection modules capture the exact physical contact pressure and tactile signals when an operator grasps a physical object. Visual data cannot convey object weight, friction, or material fragility. To solve this, force and tactile sensors record localized pressure and contact information, providing critical physical interaction feedback to the AI. This tactile telemetry teaches the robotic model the precise micro-newtons of force required to lift an object without crushing it.
Human Skeleton Point Modules

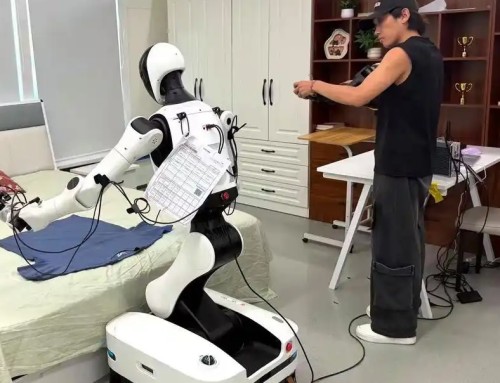

Human skeleton point modules record the precise joint articulation limits and continuous motion trajectories of the operator’s limbs. Annotators physically perform operational tasks while the wearable hardware records motion trajectories, hand movements, and object interactions. By tracking spatial coordinates across the shoulder, elbow, and wrist joints, this module digitizes the exact kinematic sequence human bodies use to execute mechanical leverage.
Object Spatial Pose Modules
Object spatial pose modules record the exact three-dimensional position and rotation posture of target objects within the active environment. Rather than just identifying an object, this module calculates the 6-Degree-of-Freedom (6-DoF) orientation of the target tool or component in real-time. This spatial pose data guarantees that the neural network learns exactly how an object twists or tilts in space as the human operator manipulates it.
How Do Acoustic and Bioelectric Modules Anticipate Operator Intent?
Environmental Audio Modules
Environmental audio modules record the ambient acoustic signals generated during bimanual physical operations. Audio sensors capture sound streams and acoustic signals to establish comprehensive environmental awareness. Recording the distinct acoustic feedback of a latch clicking, glass shattering, or a motor straining provides the AI with non-visual confirmation that a physical task was executed successfully.
Operator Speech-to-Text Modules
Operator speech-to-text modules capture real-time vocalized intents from human operators and convert these audio streams directly into text data annotations. As the human operator performs a task, they verbally dictate their actions (e.g., “picking up the red wrench”). This module instantly transcribes the audio, automatically generating synchronized semantic labels that correlate directly with the physical video and tactile data streams.
Surface Electromyography (sEMG) Modules
Surface Electromyography (sEMG) modules capture surface muscle electrical signals to predict human force intent and limb movement anticipation. sEMG sensors attach directly to the operator’s forearms to measure the electrical activation states of specific muscle groups before the actual physical movement occurs.
Technical Parameters Summary: 9-Module Data Collection Integration
| Sensor Category | Specific Hardware Module | Primary Data Output | Output Dimensionality |
| Visual/Spatial | Panoramic Image | Global scene layout | 2D / 360-degree Video |
| Visual/Spatial | First-Person Visible Light | Operator perspective RGB | 2D High-Res Video |
| Visual/Spatial | First-Person Depth | Object distance & outline | 3D Point Clouds |
| Kinematic | Object Spatial Pose | Target object rotation | 6-DoF Coordinates |
| Kinematic | Human Skeleton Point | Joint motion trajectories | 3D Spatial Vectors |
| Tactile | Hand Tactile | Grasping pressure feedback | Gram-force (gf) / Newtons |
| Bioelectric | sEMG (Surface EMG) | Muscle electrical activation | Millivolts (mV) |
| Acoustic | Environmental Audio | Ambient interaction sounds | Audio Waveforms |
| Acoustic | Speech-to-Text | Operator verbal intent | Transcribed Text Logs |
Operating these nine distinct multimodal data modules simultaneously demands uncompromising Direct Current (DC) power stability. If the wearable backpack experiences a voltage sag, the microsecond temporal synchronization across the visual, tactile, and sEMG streams will fail permanently. Tefoo Energy operates as a custom manufacturer of 18650 smart lithium-ion battery packs engineered explicitly for high-concurrency instrumentation OEMs. Our custom power modules deliver flat discharge curves and ultra-low voltage ripple, ensuring your Embodied AI data collection rigs maintain perfect hardware-level synchronization across all nine sensor modules during intensive real-world capture sessions.
Frequently Asked Questions (FAQ)
What is the function of the first-person depth image module?
The first-person depth image module utilizes depth cameras to collect 3D depth information and distance metrics, allowing the AI to calculate exact spatial proximity.
Why do Embodied AI systems require hand tactile collection modules?
Hand tactile collection modules utilize force sensors to record grasping pressure and physical contact information, teaching the robot how to handle objects without causing damage.
What does the surface Electromyography (sEMG) module record?
The sEMG module captures surface muscle electrical signals from the human operator to predict muscle force intent and physical exertion before the limb actually moves.
How is the environmental audio module used in data collection?
Environmental audio modules capture ambient acoustic signals during operations, providing the AI with non-visual sound perception to confirm successful physical interactions.
Why must all 9 data collection modules be synchronized?
All modules must be perfectly synchronized because even minor timing discrepancies degrade perception quality and negatively impact the performance of multimodal sensor fusion.
